GDS® Handheld Dock with USB Type-C 2.0 for IntelliSkin® Products
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features
- Spring-loaded powered dock featuring GDS® Technology™ is designed to accommodate IntelliSkin®-wrapped handheld devices including the Zebra EC50 & EC55, the XCover6 Pro, and iPhone 15 series
- Supports phones with IntelliSkin® that have have handstrap connected to device.
- Compatible with RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty

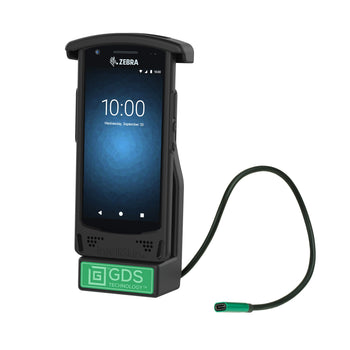

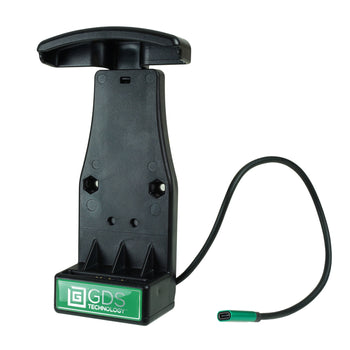

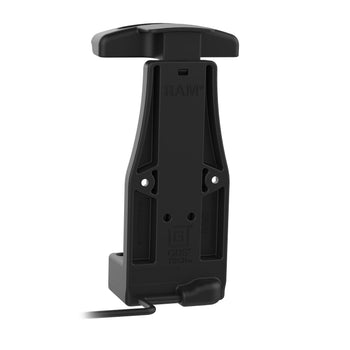

This GDS® Vehicle dock with USB Type-C is designed to fit all compatible handheld devices wrapped with IntelliSkin® including the Apple iPhone 15 series, Zebra EC50/EC55, XCover6 Pro, and XCover Pro. The dock's one-handed operation makes it easier than ever to secure your IntelliSkin®-wrapped device in a variety of environments and mounting configurations. This dock also accommodates space behind the device to support the GDS® Hand Strap while mounted. An integrated cutout on the top allows for the ability to access buttons, ports, and scanner without removing the device from the dock. Featuring a 15" long USB Type-C cable, this dock supports USB 2.0 charging specifications and data transfer. Always Protected. Always Connected.®
Components
hardware included
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x .75" Screws
(2) #8-32 Nylock Nuts
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
output voltage
20VDC @ 3A
input connector
USB Type-C
input cable length
380mm
Warranty
3 year warranty
Weight
0.18 kg
