GDS® Power + USB-A & RJ45 Data Dock Cup for IntelliSkin®
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features
- Upgrade your existing GDS® vehicle dock to enable high speed charging capabilities for devices using IntelliSkin® Next Generation sleeves, using an 8-pin connection
- Support ethernet connection and one peripheral device via dual-integrated RJ45 connector and USB Type-A female connector
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty

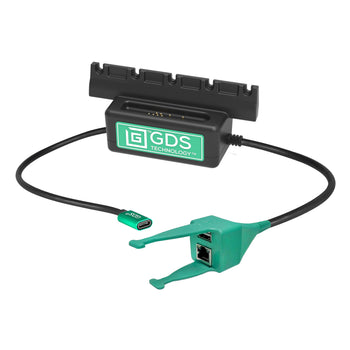

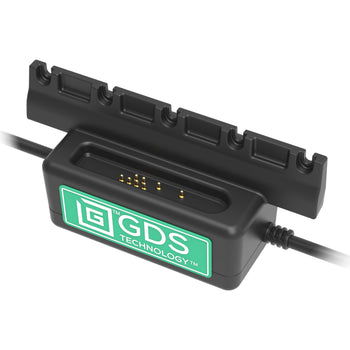

The GDS® Power + USB-A & RJ45 Data Dock Cup for IntelliSkin® (RAM-GDS-DOCK-V10C-RJ45AU) is designed specifically to support IntelliSkin® Next Generation-enabled devices. This bottom cup features 8 pogo pins powered by the USB Type-C pigtail to support high charging capabilities. It also includes a dual-input pigtail that features one RJ45 (ethernet) connector for a direct and secure connection to your network alongside one USB Type-A female connector for connecting peripherals to your tablet. When paired with the proper top cup, it can be used to upgrade your existing GDS® vehicle dock. Always Protected. Always Connected.®
materials
High strength composite
packaging type
Poly Bag
output voltage
Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max
power output
15W
input connector
USB Type-C (Power In)
input cable length
.21 Meters
output connector
(1) USB Type-A & (1) RJ45 Female
output cable length
.21 Meters
Warranty
3 year warranty
Weight
0.19 kg
