GDS® Tough-Dock™ for Samsung Tab A 8.4 SM-T307

Part#: RAM-GDS-DOCK-SAM67CPU
UPC:793442014772Patented & Pats. Pend.

£143.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks.

For a more accurate lead time please contact our sales team.

Swipe to see more images.

Features

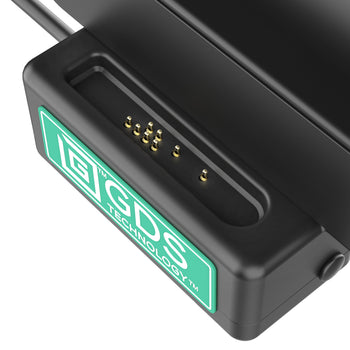

  • Spring-loaded vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high speed charging

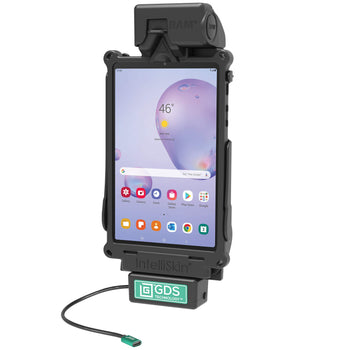

  • Designed specifically for the Samsung Galaxy Tab A 8.4 (2020) wrapped in an IntelliSkin® Next Gen protective sleeve
  • Incorporated into the bottom docking cup is a USB Type-C Female connector for providing high speed charging to the dock
  • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
  • Backed by a 3-year warranty

The GDS® Tough-Dock™ is the newest vehicle dock in the GDS® Tech™ line of vehicle docks designed to support the Samsung Galaxy Tab A 8.0 (2019) SM-T290 in an IntelliSkin® Next Gen protective sleeve for your fleet. Using a USB Type-C power connector, the GDS® Tough-Dock™ supports high speed charging capabilities for the Samsung Galaxy Tab A 8.0 (2019) SM-T290. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

Components

hardware included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) USB Type-C to Type-A Cable

hole pattern

4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

output voltage

5V - 12V @ 3A

power output

15W

input connector

USB Type-C

Warranty

3 year warranty

Weight

0.48 kg

Additional Information

The 3.5mm audio jack is blocked while in the dock. If access to this port is needed, see RAM-GDS-DOCKL-V9-SAM67CU.
