GDS® Tough-Dock™ with Multi-Mode for Samsung Tab Active5 & 3
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features

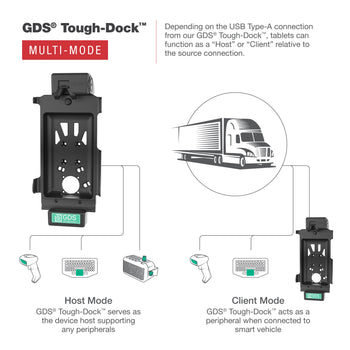

- Multi-mode allows for centralized AI software systems to access tablets when docked
- Designed specifically for the Samsung Galaxy Tab Active5, Tab Active3 and 2 wrapped in an IntelliSkin® Next Gen protective sleeve
- Integrated pogo pin connectors provide high speed charging to devices via integrated USB Type-C Female connector

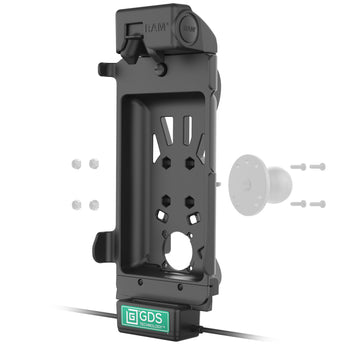

- RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
- Backed by a 3-year warranty

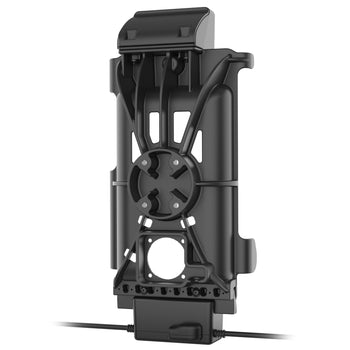

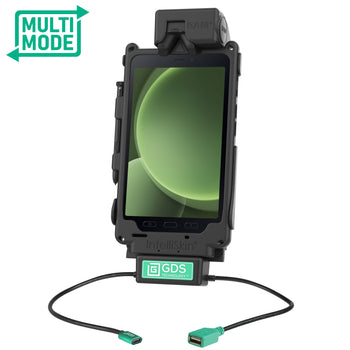

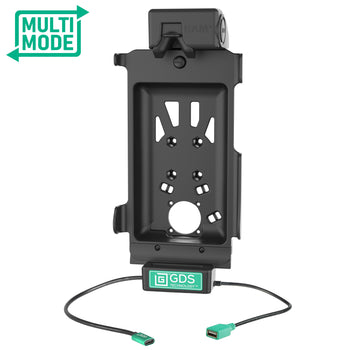

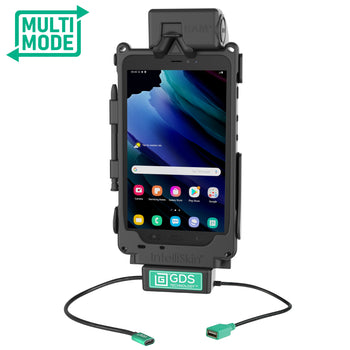

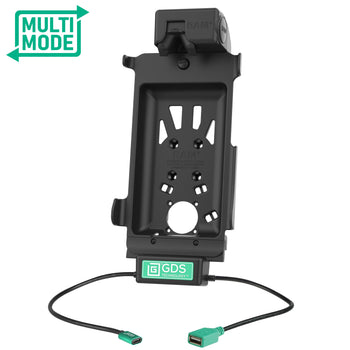

The GDS® Tough-Dock™ for Tab Active5, Tab Active3 & 2 with Multi-Mode (RAM-GDS-DOCK-SAM62-MMU) is a vehicle dock designed to support the Samsung Galaxy Tab Active5 and Tab Active3 & 2 in an IntelliSkin® Next Gen protective sleeve for your fleet. Mutli-Mode is integrated into the dock allowing centralized AI systems to perform as the host instead of the tablet, turning your IntelliSkin®-wrapped tablet into a peripheral. There is no button or switch that turns this function on and off—Multi-Mode is automatically activated when the device is docked. Using a USB Type-C power connector, the GDS® Tough-Dock™ supports high speed charging capabilities for the Galaxy Tab Active5, Tab Active3 and Tab Active2. The GDS® Tough-Dock™ is compatible with RAM® ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
Components
hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp with Zip Ties
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
output voltage
5V - 12V @ 3A max
Peripheral: 5V @ 900mA max
power output
15W
input connector
USB Type-C
USB Type A for 1 Peripheral
output cable length
.21 Meters
Weight
0.55 kg
