GDS® Tough-Dock™ + Single USB-A for Tab Active4 Pro & Tab Active Pro

£227.99 (Incl. VAT)

Currently out of stock, maximum wait time will be 6 weeks.

Features

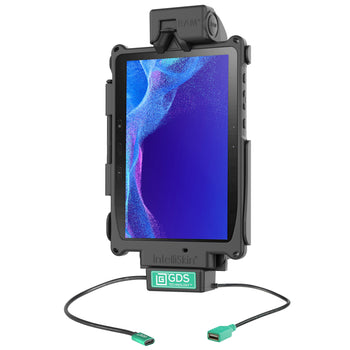

  • Spring-loaded vehicle dock designed specifically for the Samsung Galaxy Tab Active4 Pro wrapped in an IntelliSkin® Next Gen protective sleeve

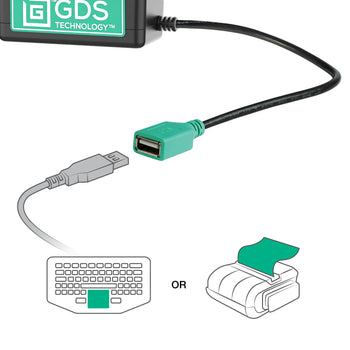

  • Power delivered via USB-C connector; connect a single input device via USB-A connector

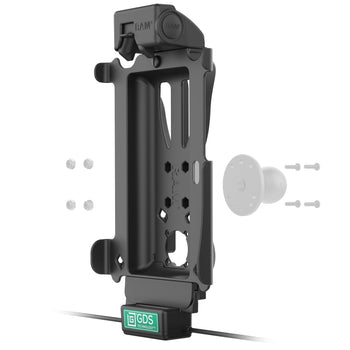

  • RAM® Mounts Compatible™ including RAM® NFC Extender and GDS® Hand-Stand™ Hand Strap and Kickstand
  • Backed by a 3-year warranty
GDS® Tough-Dock™ + Single USB-A for Tab Active4 Pro & Tab Active Pro
Part#:RAM-GDS-DOCK-SAM54NCDU UPC:793442022494 Patented

Overview

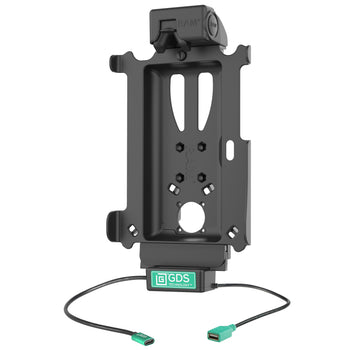

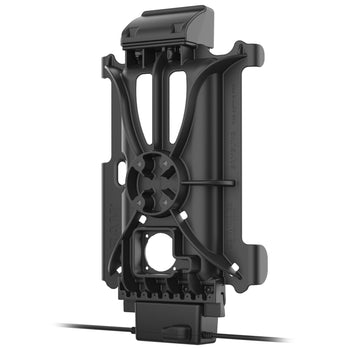

This GDS® Tough-Dock™ vehicle dock (RAM-GDS-DOCK-SAM54NCDU) is designed to support the Samsung Galaxy Tab Active4 Pro in an IntelliSkin® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS® Tough-Dock™ also includes one USB Type-A connector to support one peripheral add-on such as a keyboard, printer, scanner and more. The GDS® Tough-Dock™ is designed with housing that accomodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

hardware included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp with Zip Ties
(1) USB Type-C to Type-A Cable

hole pattern

4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

output voltage

5V - 12V @ 3A max
Peripheral: 5V @ 900mA max

power output

15W

input connector

USB Type-C
USB Type A for 1 Peripheral

output cable length

215mm

peripheral output

500mAh

Warranty

3 year warranty

Weight

0.774 kg

Additional Information

This product will not support the "No Battery Mode" function of the Tab Active4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options here.

Components

GDS® Genuine USB Type-C 3.0 Cable RAM-GDS-CAB-USBC-AMCMU £15.99
