GDS® Tough-Dock™ + USB-C Data for Tab Active4 Pro & Tab Active Pro
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to order a suitable.
Swipe to see more images.
Features
- Form-fit vehicle dock featuring GDS® Technology™ for the Samsung Tab Active4 Pro & Tab Active Pro

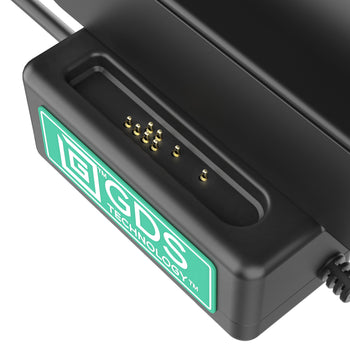

- Enables high speed charging capabilities for IntelliSkin®-wrapped devices via 8-pin connection

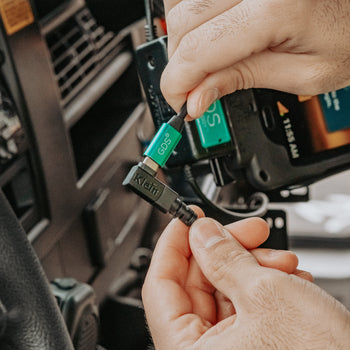

- Supports one peripheral device via integrated USB Type-C female connector; includes push-to-talk capabilities when paired with Klein Electronics microphones
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty

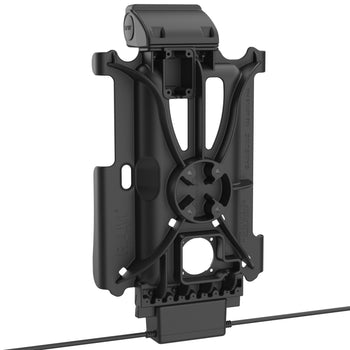

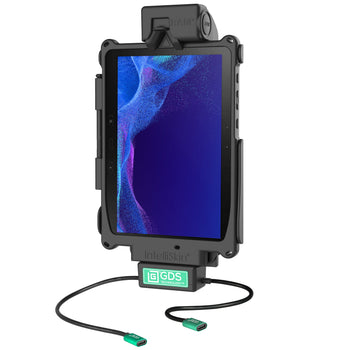

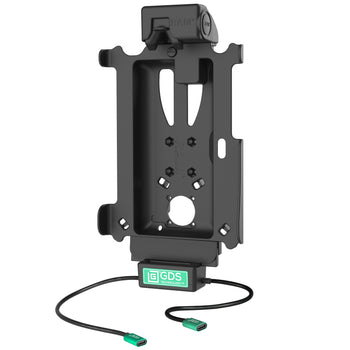

The GDS® Tough-Dock™ + USB-C Data for Tab Active4 Pro & Tab Active Pro (RAM-GDS-DOCK-SAM54NC-CU) is a vehicle dock designed to support the Samsung Galaxy Tab Active4 Pro and Tab Active Pro wrapped in an IntelliSkin® Next Gen protective sleeve. Using a USB Type-C power connector, the GDS® Tough-Dock™ supports high speed charging capabilities required by the Samsung devices. It also features an additional USB Type-C connector to support a single peripheral device. The USB Type-C connection work seamlessly with Klein Electronics technology to enable push-to-talk (PTT) over-cellular capabilities. The GDS® Tough-Dock™ is designed with housing that accomodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
Components
hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
output voltage
5V - 12V @ 3A
power output
15W
input connector
USB Type-C (Power In)
input cable length
215mm
output connector
USB Type-C (Peripheral)
output cable length
215mm
peripheral output
500mAh
Warranty
3 year warranty
Weight
0.605 kg
