GDS® Slide Dock™ with Power Delivery & Drill Down Base

Part#: RAM-GDS-DOCK-G7-8-NGU
UPC:793442120190Patented & Pats. Pend.

£121.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.

.

Swipe to see more images.

Features

  • Drill-down base allows the GDS® Slide Dock™ to be easily secured
  • Adjustable height accommodates a variety of different devices
  • Compatible with Next Generation IntelliSkin®-enabled devices
  • Backed by a 3-year warranty

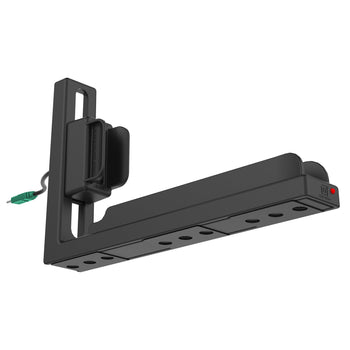

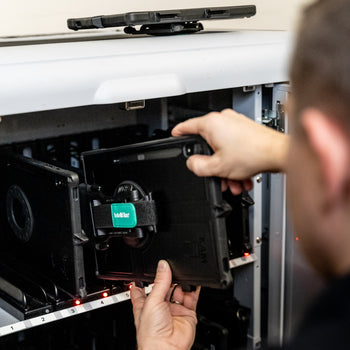

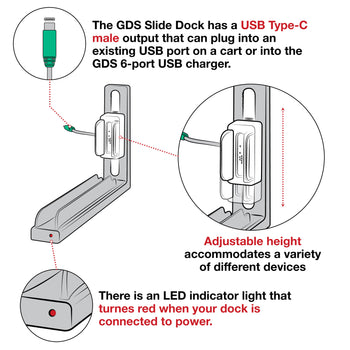

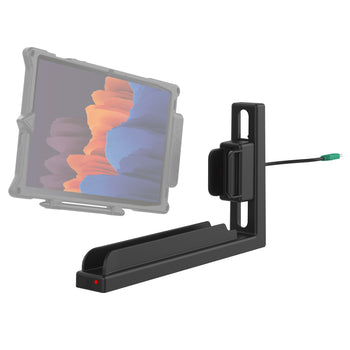

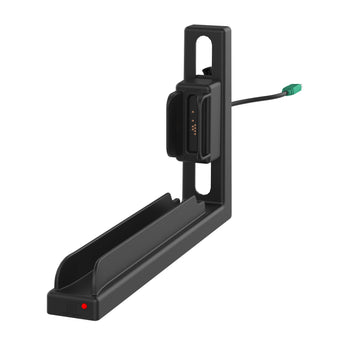

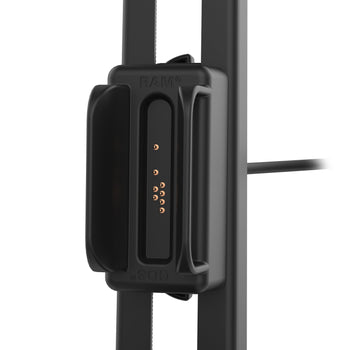

The GDS® Slide Dock™ is a scalable solution for charging multiple devices at the same time. This version is compatible with Next Generation IntelliSkin® sleeves. Designed to be integrated into a cabinet or portable charging station, each GDS® Slide Dock™ can be permanently mounted to any surface by being bolted or screwed in. The GDS® connector’s height can be easily adjusted to accommodate different devices. The adjustable height settings are numbered to quickly set up for any cart or charging station. This GDS® Slide Dock™ has a USB Type-C male output that supports Power Delivery and can plug into an existing USB port on a cart or into a multi-port USB charger. There is an LED indicator light that turns red when your dock is connected to power. Always Protected. Always Connected.®

Components

product dimensions

Overall Length: 13.59"
Overall Width: 1.77"
Overall Height: 8.02"

output voltage

20V @ 3A

input connector

USB Type-C Male

Warranty

3 year warranty

Weight

0.368 kg

Additional Information

This dock will not support IntelliSkin® models with a lightning connector or mUSB connector.
