GDS® Uni-Conn™ Tilt & Swivel Dock with PoE + Data - Gray
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 1 to 7 week timeframe. Please contact our sales team for more accurate delivery information.
.
Swipe to see more images.
Features

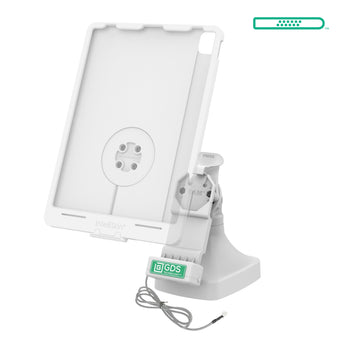

- Light gray, free-standing, powered Kiosk dock for devices enclosed in an IntelliSkin® with D-shaped bottom connection and GDS® Uni-Conn™ Adapter

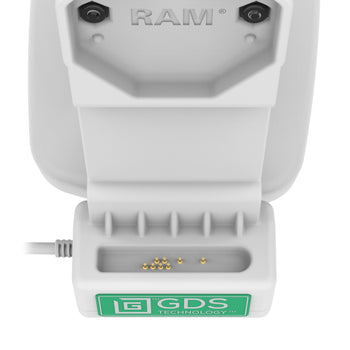

- GDS® Uni-Conn™ dock pogo pins provide Power over Ethernet (PoE) via RJ45 connector

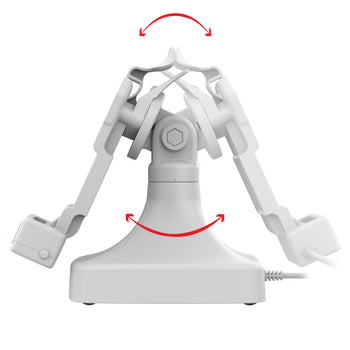

- Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
- Weighted base with rubber pads prevents kiosk from moving
- Backed by a 3-year warranty

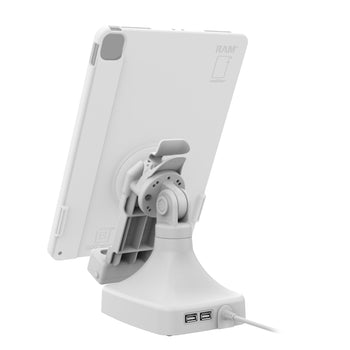

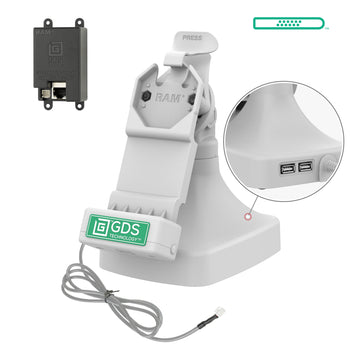

The GDS® Uni-Conn™ Tilt & Swivel Dock with PoE + Data - Gray (RAM-GDS-DOCK-D14-U1E-2A-GRY) is a free-standing, powered dock for devices enclosed in an IntelliSkin® Next Gen, IntelliSkin® Hard Case, or standard IntelliSkin® Thin-Case™ with a GDS® Uni-Conn™ adapter. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Power over Ethernet (PoE) is provided to the pogo pins integrated into the GDS® Uni-Conn™ dock via RJ45 connection while the two USB-A ports on the back support up to two input devices like keyboard, mouse, scanner gun, and more. This dock features a weighted base and rubber pads that provide theft deterrence and prevent it from sliding around on surfaces. The light gray aesthetic is ideal for sophisticated, bright workplaces. One Dock to Connect Them All™ Always Protected. Always Connected.®
Components
hardware included

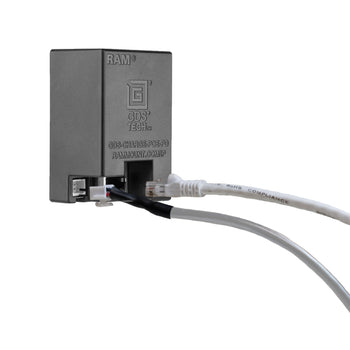

(1) RAM® PoE to PD Charging Module

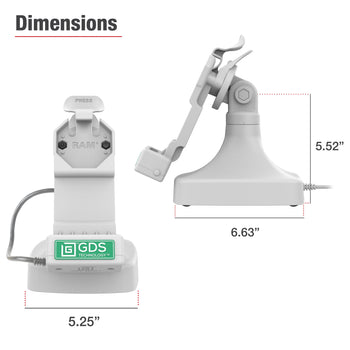

product dimensions
Height from Base to Tilt Bolt: 5.52"
Base Width: 5.13"
Base Depth: 6.63"
materials
High Strength Composite
packaging type
Box
output voltage
USB PD 3.0:
5V @ 3A
9V @ 2.2A
12V @ 1.7A
power output
24W Max
input connector
JST Male Connector
input cable length
1.5 Meters
ports
(2) USB-A
Warranty
3 year warranty
Weight
2.886 kg
