GDS® 6-Port Charging Module for IntelliSkin® Phones in Cabinets
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.


Special Order Item. Please contact our sales team for availability.
.
Swipe to see more images.

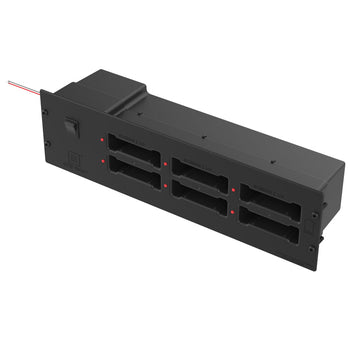

Features

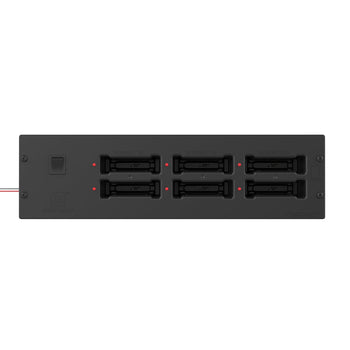

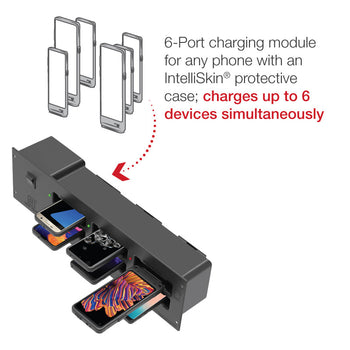

- 6-Port charging module for any phone with an IntelliSkin® protective case; charges up to 6 devices simultaneously

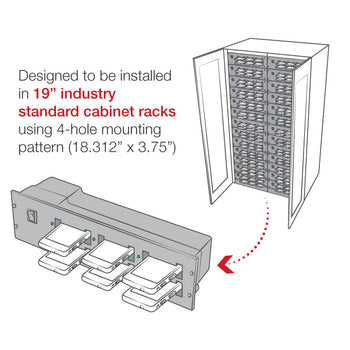

- Designed to be installed in 19" industry standard cabinet racks using 4-hole mounting pattern (18.312" x 3.75")
- Uses 78W power supply providing 12.5W of power to each device (5V, 2.5V); plugs into standard 120V or 220V wall outlet or power strip using AC cord

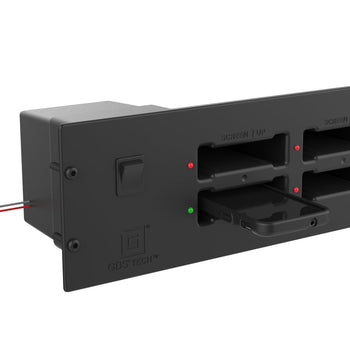

- External rocker switch to control power with LED charge status indicators
- Backed by a 3-year warranty

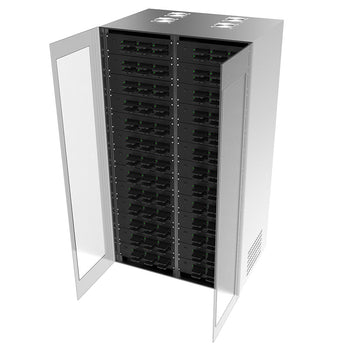

This charging module supports up to 6 devices with IntelliSkin® protective sleeves and can be installed along multiple modules in a cabinet with 19" industry standard racks, creating the ideal mass charging solution for a variety of use cases involving a large inventory of usable smart phones, such as musuem tours, warehouses, retail and more. Utlilizing the 78W power supply, this charging module delivers 12.5W of power simultaneously to each device drawing from any standard 120V or 220V wall outlet or power strip. Always Protected. Always Connected.®
product dimensions
Overall Length: 19"
Overall Width: 5.25"
materials
High strength composite
packaging type
Retail Box
output voltage
5.42VDC @ 2.4A (per port)
power output
78W total (13W per port)
Warranty
3 year warranty
Weight
2.727 kg
