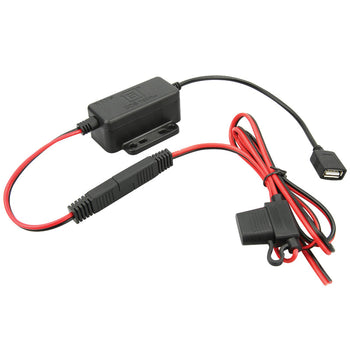

GDS® Modular 30-64V Hardwire Charger with Female USB Type A Connector
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
.
Features
- Hardwire charger includes USB Type-A female connector; 30V-64V input range, 5V output
- When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty
The GDS® Modular Hardwire Charger with Female USB Type-A Connector is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type-A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a 30V-64V input range. Always Protected. Always Connected.®
packaging type
Poly Bag
input voltage
30-64VDC
output voltage
5-9VDC*
output current
2.5A max
input connector
Female USB Type A
input cable length
1.2 Meters including 2 Pole Flat Marine Connector
output cable length
.2 Meters
operating temperature
-10°C to +70°C
storage temperature
-40°C to +70°C
regulatory
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications
E-Mark Certification
RCM Certification
IEC/UL 62368-1
Warranty
3 year warranty
Weight
0.144 kg
