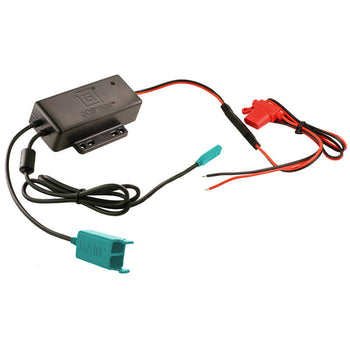

GDS® Hardwire Charger with USB Type-C Female & Dual USB Type A Ports
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Features
- Hardwire charger includes USB Type-C female connection and dual USB Type-A female connector
- Connect up to two peripherals to dual USB Type-A ports such as keyboards, mouse, barcode scanners, vehicle docks and more
- When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty
The GDS® hardwire charger with USB Type-C female connector and dual USB Type-A port is the ideal solution for providing power to any Type-C GDS® vehicle solution, while also allowing for the use of up to two USB Type-A peripherals – such as keyboards, mouse, printers, barcode scanners, or vehicle docks. By connecting directly to the power source of your vehicle, the GDS® Charge™ accessory delivers USB Type-C power to your device and allows you to connect up to two USB 2.0 accessories. Avoid rewiring when changing or upgrading devices by simply unplugging the power connector and installing a new GDS® Charge™ accessory. Always Protected. Always Connected.®
packaging type
Poly Bag
input voltage
12-24VDC
output voltage
5V @ 3A (15W)
9V @ 3A (27W)
12V @ 3A (36W)
15V @ 2.5A (37.5W)
power output
37.5W Total
input connector
Power: Female USB Type-C
Data: Dual USB Type A (500ma each)
input cable length
1.2 Meters including 2 Pole Flat Marine Connector
output cable length
150mm
operating temperature
-20°C to +70°C
storage temperature
-40°C to +85°C
regulatory
Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)
certifications
FCC, IC, CE RCM, WEEE, RoHS Compliant
USB Power Delivery 2.0 and 3.0 Support
Weight
0.25 kg
