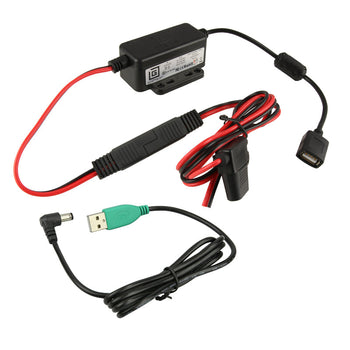

GDS® Modular 10-30V Hardwire Charger with 90-Degree DC Cable
The GDS® Modular Hardwire Charger with DC cable is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type-A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Always Protected. Always Connected.®
Overview
packaging type
Poly Bag
input voltage
10-30VDC
output voltage
5-9VDC*
output current
2.5A max
input connector
90° DC Plug
input cable length
1.2 Meters including 2 Pole Flat Marine Connector
output cable length
.2 Meter
operating temperature
-10°C to +70°C
storage temperature
-40°C to +70°C
regulatory
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications
E-Mark Certification
RCM Certification
IEC/UL 62368-1
Warranty
3 year warranty
Weight
0.18 kg
