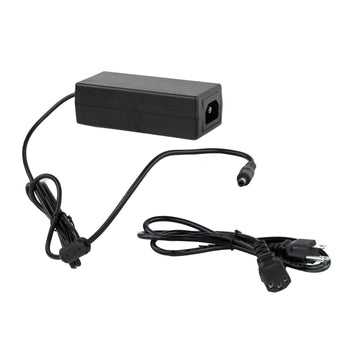

GDS® Power Supply 60W with Male DC 5.5mm
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Features
- Power supply features male 5.5mm barrel connector & 12VDC output
- Compatible with standard US outlet
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty
The GDS® Power Supply 60W with Male DC 5.5mm (RAM-GDS-CHARGE-ACDC-60) is the ideal solution for providing power to any RAM®, GDS® Docks™, or devices that requires 12VDC. This power supply requires a standard US outlet and is not recommended for vehicle solutions, refer to the GDS® Hardwire Chargers for in-vehicle charging solutions. Always Protected. Always Connected.®
packaging type
Box
power specifications
60W Regulated Power Suppy
Input Voltage 90-264VAC
Rated Operating Range 110-240VAC
47-63HZ Input Range
Rated Input Frequency Range 50/60HZ
Peak Inrush Current On Cold Start 30A
12VDC @ 5A (60W) Output
output connector
Male 5.5mm OD x 2.5mm ID Barrel Connector
regulatory
FCC, IC, RCM/CTICK, CE, UKCA
Over Current Protection, Over Voltage Protection, Short Circuit Protection
certifications
UL, RoHS, WEEE, DOE VI, GS
Warranty
3 year warranty
Weight
0.416 kg
