GDS® Tough-Dock™ Klein VALOR PTT Vehicle Bundle for Samsung Tab Active3

Part#: RAM-GDS-101B2-SAM62C-C-V7CU
UPC:793442019074Patented & Pats. Pend.

£406.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Special Order Item. Please contact our sales team for availability.

You can also order the individual component parts below.

Swipe to see more images.

Features

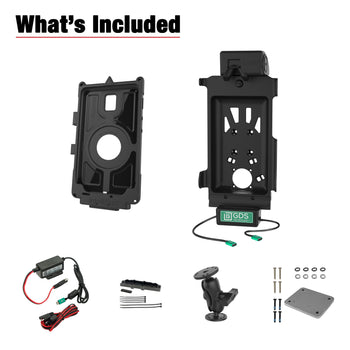

  • Bundle includes the GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab Active3, GDS® Modular 10-30V Hardwire Charger, C size double ball mount with short arm, backing plate adapter, and cable clamp
  • Capable of Push-To-Talk via USB Type-C connection; compatible with the Klein Electronics Valor Microphone

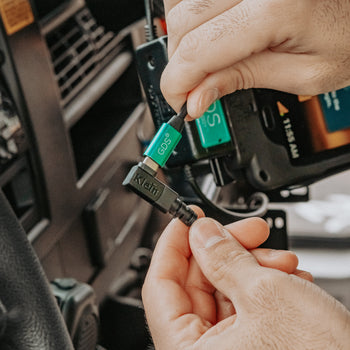

  • Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power
  • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
  • Backed by a 3-year warranty

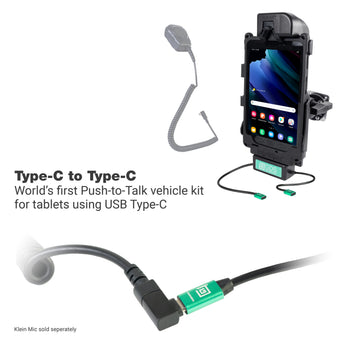

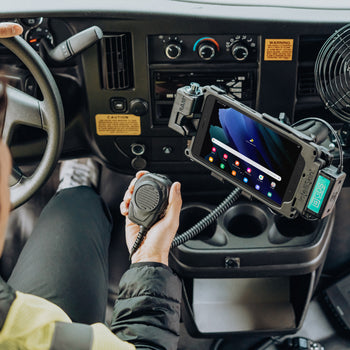

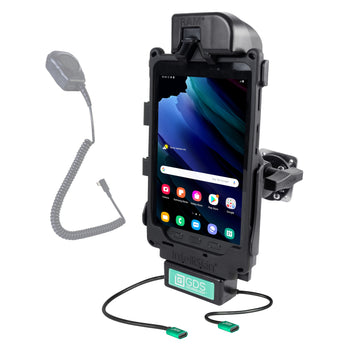

The GDS® Tough-Dock™ Klein VALOR PTT Vehicle Bundle for Samsung Tab Active3 (RAM-GDS-101B2-SAM62C-C-V7CU) is the world's first vehicle dock capable of facilitating push-to-talk communications via a USB Type-C connection, made in partnership with Klein Electronics, Inc. It is designed to support the Samsung Galaxy Tab Active3 in an IntelliSkin® Next Gen protective sleeve, allowing users to take advantage of the entire GDS® Ecosystem™. The GDS® Tough-Dock™ uses a USB Type-C power connector to support high speed charging capabilities for the Tab Active3. This solution includes the GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab Active3, GDS® Modular 10-30V Hardwire Charger, C size double ball mount with short arm, backing plate adapter, and cable clamp. Klein Electronics Valor Remote Speaker Microphone (RSM) sold separately. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

hardware included

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Vehicle Hardwire Charger

socket to socket length

2.5"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

C Size (1.5")

materials

Steel
Marine-grade aluminium
High strength composite

packaging type

Box

output voltage

Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max

power output

15W

input connector

USB Type-C (Power In)

input cable length

215mm

output connector

USB Type-C (Peripheral)

output cable length

215mm

Weight

1.99 kg
