RAM® 4" Square Post Clamp Mount with 75x75mm VESA Plate

Part#: RAM-D-2461U-C-247-4
UPC:793442014284

£141.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.

You can order the individual component parts below or we'll try to offer a suitable alternative.

Swipe to see more images.

Features

  • D Size ball with 75 x 75mm VESA plate connects to monitors and rugged tablet PC's with the matching hole pattern
  • Includes 4" clamping base for posts and a short length, D size RAM® double socket arm with an overall length of 5.1" and socket-to-socket length of 3.6"; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

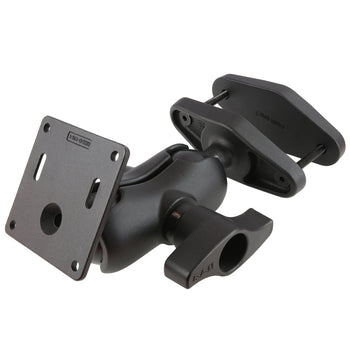

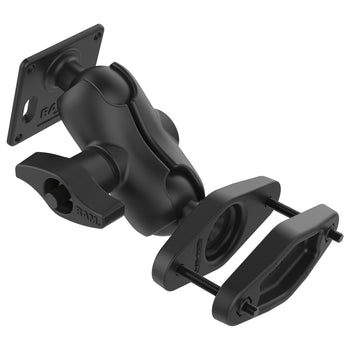

This ideal forklift mount consists of a D size short double socket arm, a square D size plate with a 75 x 75mm VESA hole pattern and 4" clamp base for square post mounting on forklifts. The clamp base will wrap around a maximum width of 4" and is tightened by screwing the two plates together with the included nuts and bolts. RAM® Mounts ball & socket technology dampens shock and vibration, as well as allows for almost infinite adjustment for perfect viewing angles. This D size forklift mount is designed for heavy duty monitor mounting for forklifts, as well as rugged tablets which could be paired with accessory brackets to support keyboards and other peripherals.

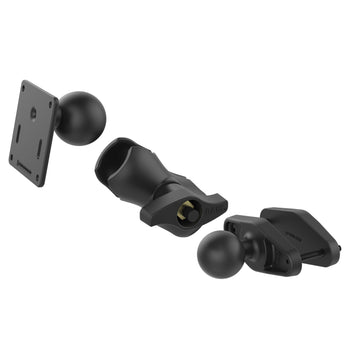

Components

hardware included

(2) 5/16"-18 x 3" Machine Screws
(2) 5/16"-18 Nylock Nuts

clamp range

4" max width

socket to socket length

3.6"

hole pattern

75 x 75mm VESA

plate size

3.625" x 3.625"

ball size

D Size (2.25")

weight capacity

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

materials

Marine-grade aluminium

packaging type

Poly Bag

Weight

1.757 kg
