RAM® Marine Electronics Mount with RAM® Hi-Torq™ Wrench

Part#: RAM-D-115-C-KNOB9H
UPC:793442955631

£134.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks.

For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..

Swipe to see more images.

Features

  • Complete flat surface, drill-down mounting solution with short length D size socket arm compatible with 9"-12" fishfinder gimbal brackets

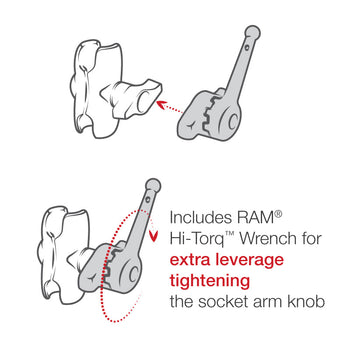

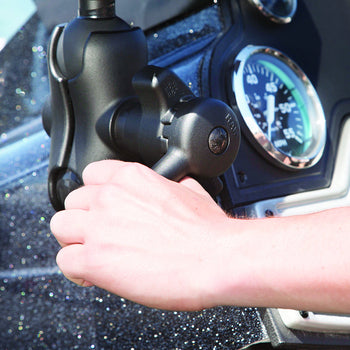

  • Includes RAM® Hi-Torq™ Wrench for extra leverage tightening the socket arm knob
  • RAM® Mounts ball and socket technology allows for near-infinite adjustability
  • Made of Powder-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty

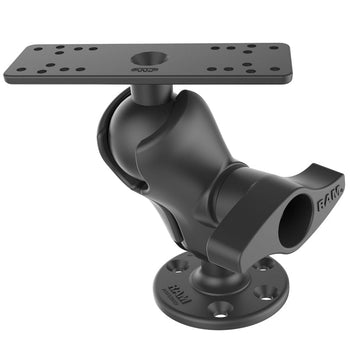

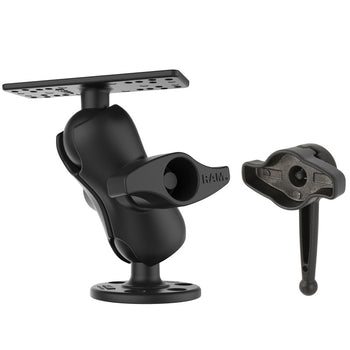

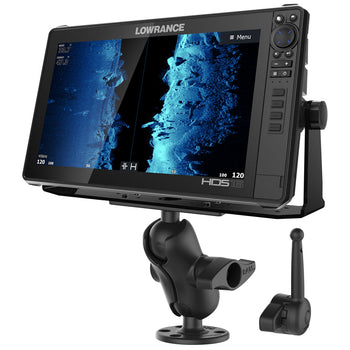

The RAM-D-115-C-KNOB9H consists of a base with a 2.25” diameter D size ball, a short arm, a Hi-Torq™ wrench and a 6.25” x 2” marine electronic plate with a D size ball for supporting larger devices. This marine electronic plate contains different combinations of pre-drilled holes and is a direct fit for 9”-12” fishfinder gimbal brackets. For cold weather environments, the included Hi-Torq wrench helps to tighten the knob on the arm for a secure hold. Supports devices such as the Lowrance HDS-9 Gen2 Touch, Garmin GPSMAP 7407 and more.

Components

product dimensions

Overall Height: 7.325"

socket to socket length

3.6"

hole pattern

See Drawings

plate size

Top Plate: 6.25" x 2"
Bottom Plate: 3.68" Diameter

ball size

D Size (2.25")

weight capacity

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

materials

Marine-grade aluminium

packaging type

Retail bag

Weight

1.66 kg

Additional Information

The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
