RAM® Large Marine Electronics Mount with Jam Nut - Short

Part#: RAM-D-111U-C-MI1
UPC:793442921742

£135.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.

You can order the individual component parts below or we'll try to order a suitable.

Swipe to see more images.

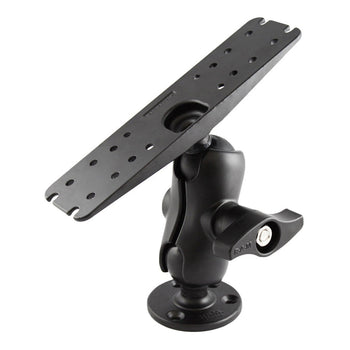

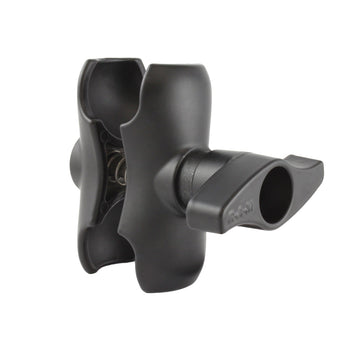

The RAM-D-111U-C-MI1 consists of a 3.68" diameter round base, SHORT double socket arm with jam nut 2 way lock and 11" x 3" rectangular base. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

product dimensions

Overall Length: 8.125"

socket to socket length

3.6"

hole pattern

See Drawings

plate size

Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter

ball size

D Size (2.25")

weight capacity

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

materials

Marine-grade aluminium

packaging type

Poly Bag

Weight

1.636 kg

Additional Information

The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
