RAM® Double Ball Mount with 100x100mm VESA Plate - D Size Medium

Part#: RAM-D-101U-246
UPC:793442003875

£139.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

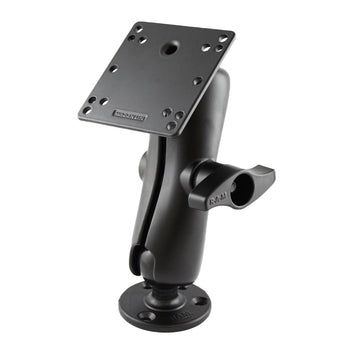

The RAM-D-101U-246 consists of a 3.68" diameter round base, STANDARD length double socket arm and 4.75" square plate with the VESA hole pattern. The 4.75" square plate has 4x100mm holes and 4x75mm holes in each corner. The 3.68" diameter round base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. Designed into the mount is a 2.25" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

hardware included

(4) .312" x .187" Shoulder Washers

product dimensions

Overall Height: 11.125"

socket to socket length

6.88"

hole pattern

See Drawings

ball size

D Size (2.25")

weight capacity

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

materials

Marine-grade aluminium

packaging type

Poly Bag

Weight

1.87 kg
