RAM® Double Ball Mount with 100x100mm VESA Plate and Large Knob - Medium
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.

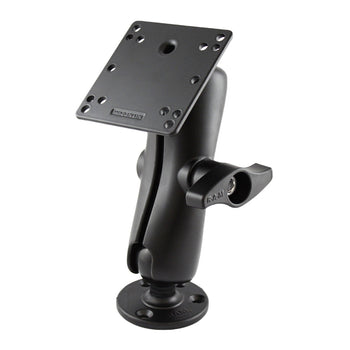

The RAM-D-101-NEC2U consists of a 3.68" diameter round base, STANDARD length double socket arm with large knob and 4.75" square plate. The 3.68" diameter round base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The 4.75" square plate contains 4x100mm holes and 4x75mm holes in each corner. Designed into the mount is a 2.25" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.
Components
product dimensions
Overall Height: 11.125"
socket to socket length
6.88"
hole pattern
See Drawings
ball size
D Size (2.25")
weight capacity
Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
1.646 kg
