RAM® Tough-Mag™ 66MM Magnetic Mount for Insta360
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
You can also order the individual component parts below.
Swipe to see more images.
Features
- RAM® Tough-Ball™ features a 1/4"-20 x .25" male threaded post and rubber washer for secure connection to Insta360

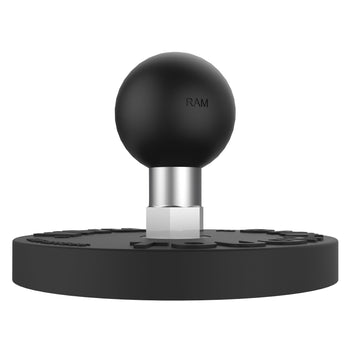

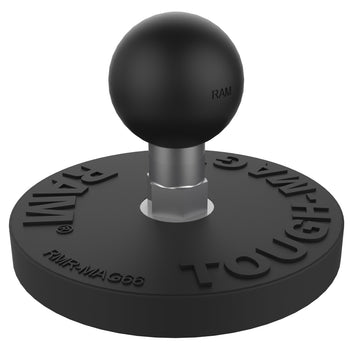

- Includes B size medium length socket arm and RAM® Tough-Mag™ base, ideal for ferrous surfaces
- Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

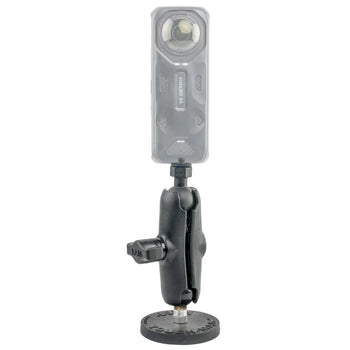

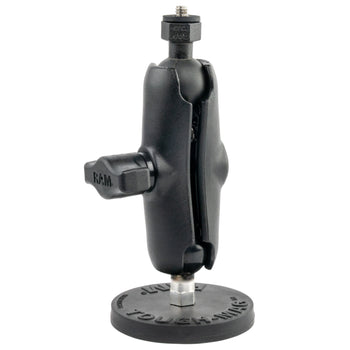

The RAM® Tough-Mag™ 66MM Magnetic Mount for Insta360 (RAM-B-MAG66-379-252025-RWU) is a versatile mounting solution that easily magnetizes to any ferrous metal surface. Secure the Insta360 by screwing the RAM® Tough-Ball™ and rubber washer onto the base of the device. The RAM® Tough-Mag™ features a 2.6" diameter base and industrial-strength N35 grade magnet paired with a rubber coating that protects the metal surface it secures to. The RAM® Mounts ball and socket system allows near-infinite adjustment to capture the perfect angle.
Components
hardware included
(1) Rubber Friction Washer
socket to socket length
3"
thread pitch
1/4"-20 x .25"
plate size
2.6" Diameter
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High-strength composite
Rubber
packaging type
Poly Bag
Weight
0.323 kg
