RAM® Track Ball™ Double Ball Mount for Lowrance Hook² & Reveal Series
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team , alternatively order the individual component parts below.
Swipe to see more images.

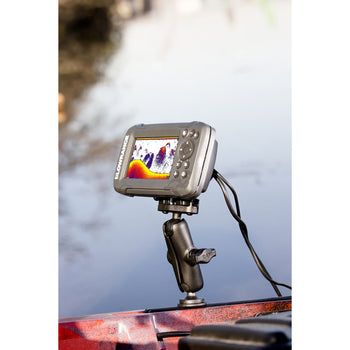

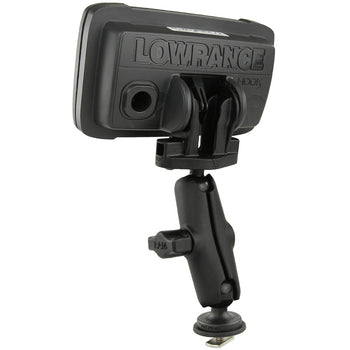

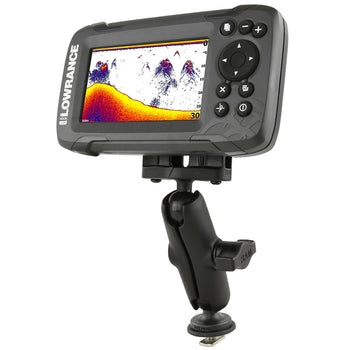

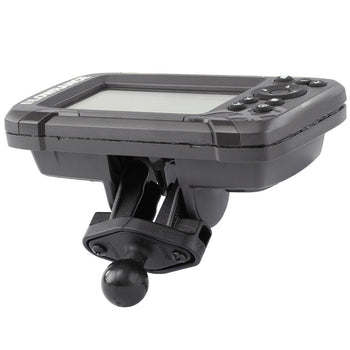

Designed for light duty fresh water use, this B size (1”) Track Ball™ kit for the Lowrance Hook² allows users to swap out the factory mounting solution with a RAM® Mounts solution. Simply attach the included adapter to the Lowrance Hook² and you're ready to connect the double socket arm and base to virtually any track system including the RAM® Tough-Track™. Made of high strength composite and powder coated marine grade aluminium, this kit is designed to keep your Hook² secure and stable in rugged environments on your kayak or inflatable.

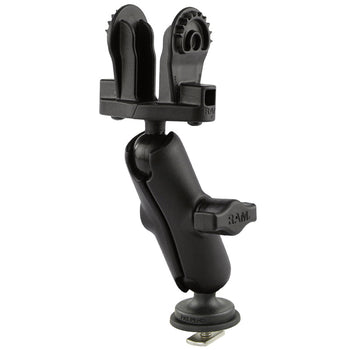

Components
hardware included
Assembly Hardware
(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Retail Bag
Weight
0.25 kg
