RAM® Gim-Ball™ Fishfinder Gimbal Base Adapter
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
.
Swipe to see more images.
Features
- B size ball adapter for gimbal-mounted electronics
- Compatible with any RAM® B size ball and socket components
- Made of marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

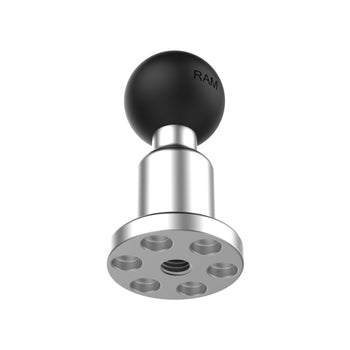

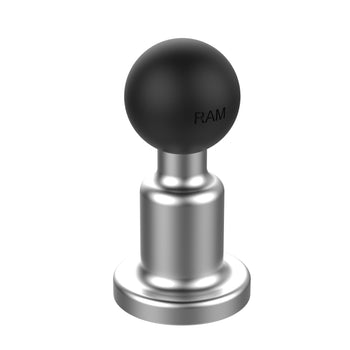

The RAM® Gim-Ball™ Fishfinder Gimbal Base Adapter (RAM-B-463-GU) creates an entirely new mounting location off the side of gimbal-mounted electronics. The universal design utilizes various stud sizes to accommodate the most popular GPS, chart plotter, fish finder, and VHF radio brands. The B size ball creates a secure mounting base—complete your solution with any B size arm and device holder.

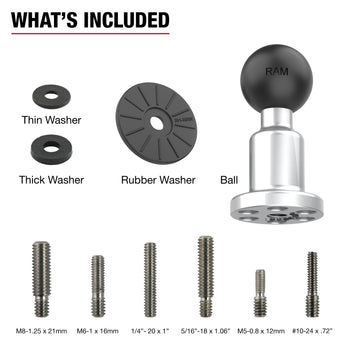

Components
hardware included
(1) Friction Washer
(1) #10-24 x .72" Threaded Stud Adapter
(1) 5/16"-18 x 1.06" Threaded Stud Adapter
(1) 1/4"-20 x 1.34" Threaded Stud Adapter
(1) M5-.8 x 12mm Threaded Stud Adapter
(1) M6-1 x 16mm Threaded Stud Adapter
(1) M8-1.25 x 21mm Threaded Stud Adapter
(4) .72" Nylon Washers
(1) .77" Nylon Washer
product dimensions
Overal Height: 2.36"
Plate Diameter: 1.25"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminum
packaging type
Poly Bag
Weight
0.101 kg
