RAM® X-Grip® Phone Mount with Small Gas Tank Base
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.
Swipe to see more images.
Features

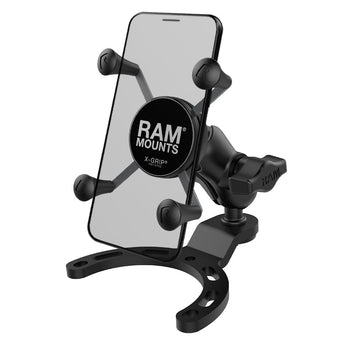

- Motorcycle gas tank mount featuring spring-loaded 'X' design for standard size phones with rubber caps sporting great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Includes RAM® Small Gas Tank Base ideal for motorcycles and short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
The RAM Gas Tank base is a low-profile way to get a unique perspective from your camera or to attach your electronic device where it can be quickly accessible. This powder coated aluminium base mounts directly to the stock gas tank of any listed compatible motorcycles. We include the hardware you need to mount to the fill port as well. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Components
hardware included
Assembly Hardware

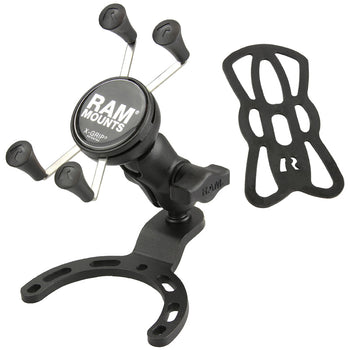

(1) Optional Tether
(1) Glue Tube for Rubber Caps
(3) M6-1.0 x 25mm Socket Head Cap Screw
(3) M5-.8 x 35mm Socket Head Cap Screw
(4) M5-.8 x 45mm Socket Head Cap Screw
(3) M5-.8 x 25mm Socket Head Cap Screw
(3) M5-.8 x 20mm Socket Head Cap Screw
(3) M5-.8 x 16mm Socket Head Cap Screw
(4) M5 Stainless Steel Washers
(3) M6 Stainless Steel Washers
holder dimensions
Width Range: 1.875" - 3.25"
Depth Range: .875" max
socket to socket length
1.75"

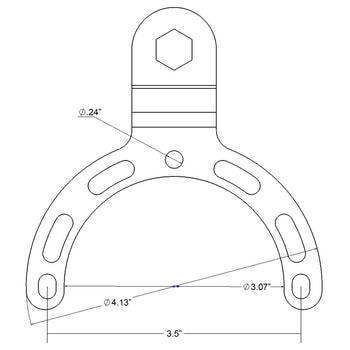

hole pattern
See Drawing
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
Stainless steel
packaging type
Poly Bag
Weight
0.368 kg
Additional Information
To ensure proper fit use the measuring guide. Tank bolts distance, for this part will be 3.5".
