RAM® Torque™ Large Rail Base with Diamond Plate - Short
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..

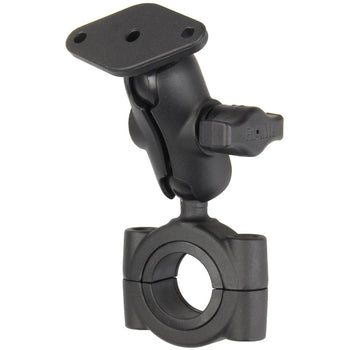

The RAM® Torque™ handlebar and rail mounting base has a 1” rubber ball and accommodates bars 1 1/8” to 1 1/2” in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. Included is a short double socket arm and a diamond plate for mounting to RAM mounting cradles.
Components
hardware included
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(2) 1.12" Split Reducing Bushings
(2) 1.27" Split Reducing Bushings
(1) 5/32" Hex Key Wrench
(1) 127mm x 17mm Rubber Adhesive Strip
clamp range
1.125" - 1.5" diameter
socket to socket length
1.75"
hole pattern
2-Hole AMPS: 1.912"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.26 kg
