RAM® Torque™ Large Rail Base with Diamond Plate - Medium
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..
Swipe to see more images.

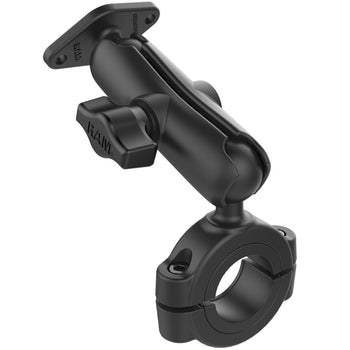

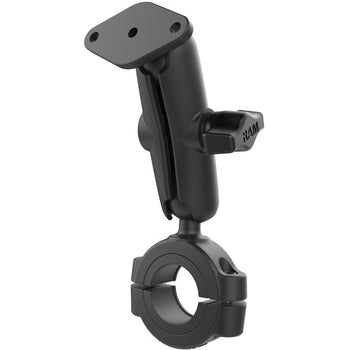

Take your mobile entertainment on the road with the RAM® Torque™ handlebar and rail mounting base. We’ve paired a B-size 1” rubber ball base that accommodates bars 1 1/8" to 1 ½” in diameter with a standard length double socket arm and B-size ball and diamond base so that you can connect any of the RAM Mounts cradles or anything else with the AMPS hole pattern. Sizing inserts are included to provide a snug fit and offer additional protection for the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. This low-profile mount is the perfect way to secure your personal electronics and small accessories in any high-vibration environment.
Components
hardware included
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(2) 1.12" Split Reducing Bushings
(2) 1.27" Split Reducing Bushings
(1) 5/32" Hex Key Wrench
(1) 127mm x 17mm Rubber Adhesive Strip
clamp range
1.125" - 1.5" diameter
socket to socket length
3"
hole pattern
2-Hole AMPS: 1.912"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.3 kg
