RAM® Tough-Wedge™ with Double Socket Arm and Round Plate
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to order a suitable.
Swipe to see more images.

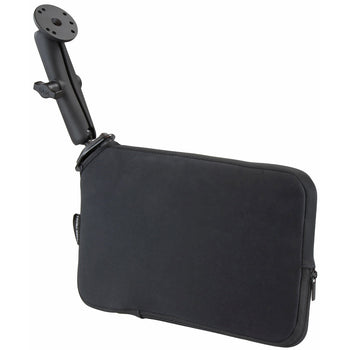

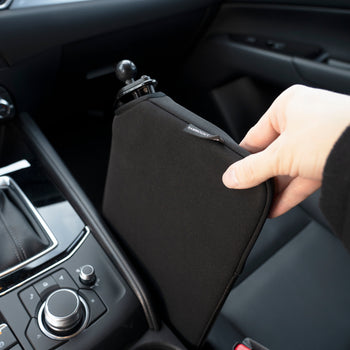

The RAM-B-407-C-202U consists of the Tough-Wedge™ 1" ball diamond base, long double socket arm and round base. The Tough-Wedge™ is a seat wedge mount that fits in the gap between the vehicle seat and center console; allowing easy access and operation of your mobile device. The Tough-Wedge™ can also be used for back-seat applications, inserted into the pockets located on the back of the front seats. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. The long length double socket arm measures 6" and will connect to all RAM cradles/adapters with a 1" ball. The 2.5" round base contains the universal AMPs hole pattern.
Components
hardware included
Assembly Hardware
wedge dimensions
Length: 13.25"
Height: 8.25"
Thickness: 1"
socket to socket length
5.31"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.918 kg
