RAM® Dashboard Mount for Motive AI Dashcam Plus
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Backorder parts are normally available within a 4 to 6 week timeframe. Please contact our sales team for more accurate delivery information.
You can also order the individual component parts below.
Swipe to see more images.
Features

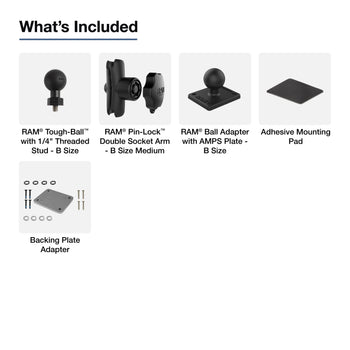

- Bundle includes B Size RAM® Tough-Ball™ with 1/4" Threaded Stud, RAM® Pin-Lock™ B Size Medium Double Socket Arm, Backing Plate Adapter, and Adhesive Mounting Pad
- Included Adhesive Mounting Pad provides no-drill installation option
- Allows for the use of both front and rear cameras on Motive AI Dashcam Plus
- Locking knob on arm provides additional theft deterrence
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

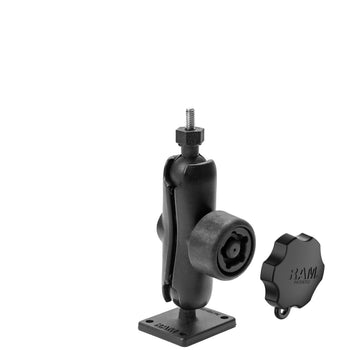

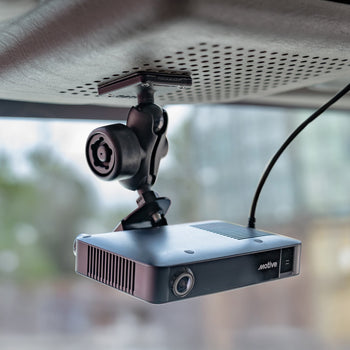

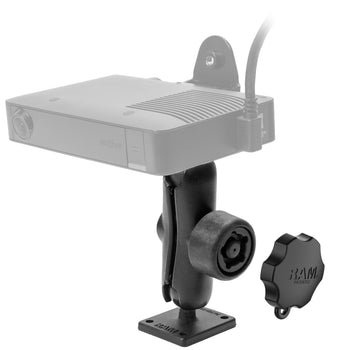

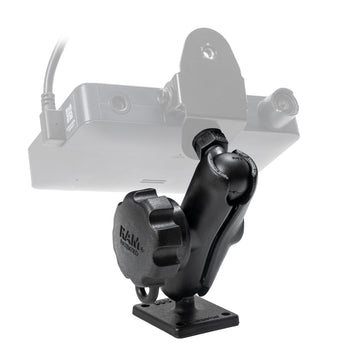

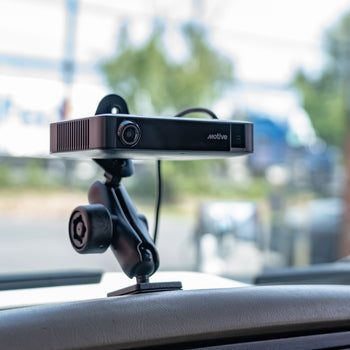

The RAM® Dashboard Mount for Motive AI Dashcam Plus (RAM-B-347-379-252050-K5-MTV3U) is a complete mounting solution for securing the Motive AI Dashcam Plus to a dashboard. This kit includes a B-size RAM® Tough-Ball™ with 1/4" threaded stud, RAM® Pin-Lock™ B-size medium double socket arm, backing plate adapter, and adhesive mounting pad. Choose between the backing plate adapter for a permanent drill-down installation or the included adhesive pad for a no-drill mounting option. For added security, the RAM® Pin-Lock™ Security Knob helps deter theft and tampering while keeping the camera secure. Built on the RAM® Mounts ball-and-socket system, this mount provides near-infinite adjustability for optimal camera positioning, while keeping both the front and rear cameras on the AI Dashcam Plus usable. Please note, this kit requires a Mount Adapter (ACC-DC6X-MNT-ADPTR1) from Motive (not included).
Components
hardware included
(1) Knob Key
(1) Dash Adhesive Pad
(1) Dash Backing Plate
(4) #10-24 x 1" Machine Screws
(4) #10 Lock Washers
(4) #8-32 x 1" Machine Screws
(4) #8 Lock Washers
socket to socket length
3"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
thread pitch
1/4"-20
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminum
High strength composite
packaging type
Poly Bag
Weight
0.43 kg
