RAM® X-Grip® Phone Mount for Wheelchair Seat Tracks
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.

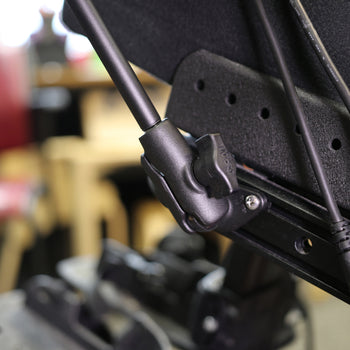

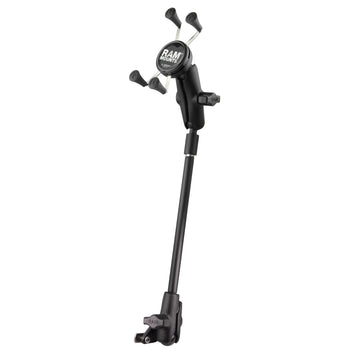

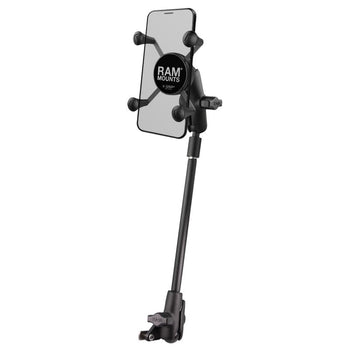

This kit includes a B size RAM® diamond ball base with a universal hardware pack that accommodates the seat track on most major wheelchair brands, including Invacare, Permobil, and Quickie. With the included short single socket arm, 9" pipe extension, and medium double socket arm, connect and adjust the RAM® X-Grip® universal phone holder to your ideal position. The popular, spring-loaded RAM® X-Grip® provides a perfect fit for a wide variety of phones.
Components
hardware included
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 1/2" Machine Screws
(2) M4 x 12mm Machine Screws
(2)M4 x 20mm Machine Screws
(2) M4 Stainless Steel Washers
(2) M4 Nylock Nuts
holder dimensions
Width Range: 1.875" - 3.25"
Depth Range: .875" max
t bolt dimensions
Large: .48" x .95"
Small: .375" x .593"
hole pattern
2-Hole AMPS: 1.912"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
Stainless steel
packaging type
Retail Bag
Weight
0.5 kg
