RAM® Tough-Mag™ 88MM Diameter Diamond Ball Base - B Size
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team.
Swipe to see more images.
Features
- Magnetic base contains 2-hole AMPS pattern with M4 threaded inserts for attaching B or C size RAM® 2-hole AMPS diamond ball bases
- Includes B size (1") RAM® 2-hole AMPS pattern ball base for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminium and rubber for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

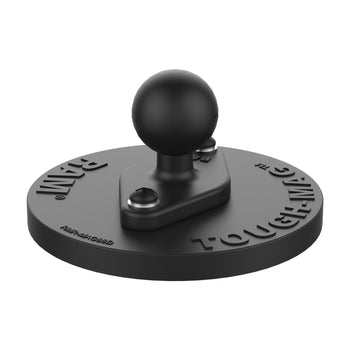

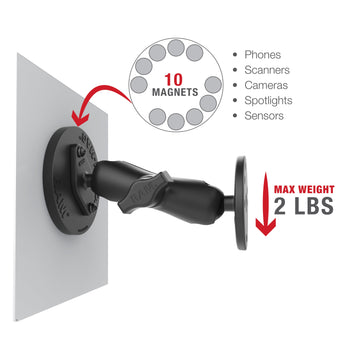

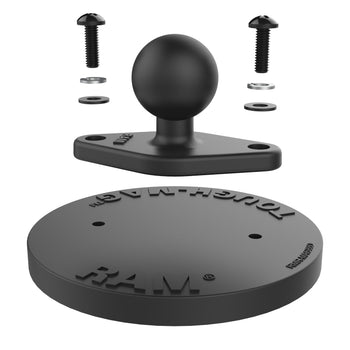

The RAM® Tough-Mag™ base consists of a B size 1" diameter 2-hole AMPS pattern diamond ball base connected to a flat 88mm diameter magnetic base. The magnetic base contains two M4 threaded inserts to attach the included B size diamond base and is designed with a rubber exterior to prevent scratching the mounting surface. Attach any B size double socket arm and your desired holder to complete the magnetic mount.
hole pattern
2-Hole AMPS: 1.912"
plate size
3.46" Diameter
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
Rubber
packaging type
Poly Bag
Weight
0.32 kg
