RAM® Ball Adapter with 3/8"-16 Threaded Post & Lock Washer - B Size

Part#: RAM-B-236U
UPC:793442113017

£9.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Swipe to see more images.

Features

  • Ball adapter features 3/8"-16 threaded post and stainless steel split lock washer

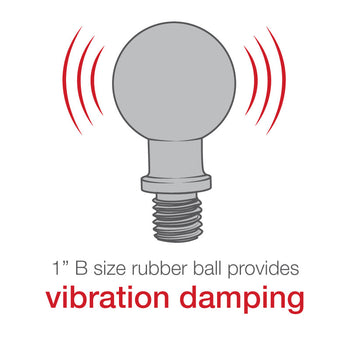

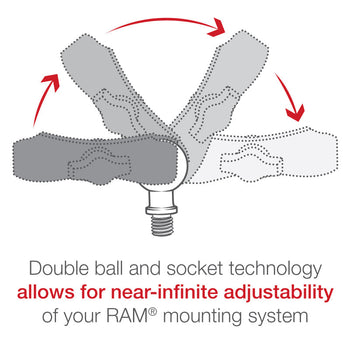

  • Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminium and stainless steel for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

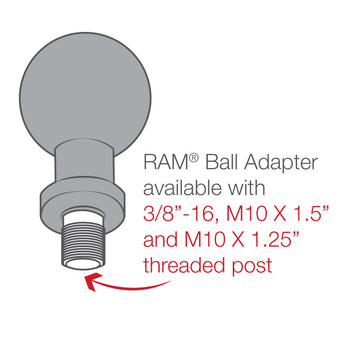

The RAM-B-236U consists of a 1" rubber ball connected to a 3/8"-16 threaded post. Thread length is .5". The RAM-B-236U will attach to all 1" diameter ball compatible arms.

hardware included

(1) 3/8" Stainless Steel Split Lock Washer

thread pitch

3/8"-16 x .5"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium

packaging type

Poly Bag

Weight

0.04 kg
