RAM® X-Grip® with Dual Suction for 9"-11" Tablets - Inset Plate
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.


Special Order Item. Please contact our sales team for availability.
You can also order the individual component parts below.
Swipe to see more images.
Features

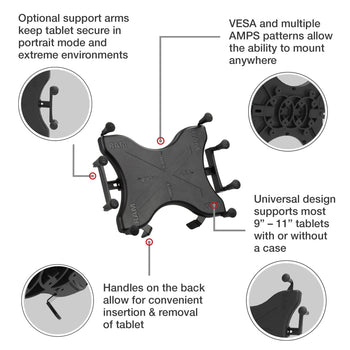

- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-11" tablets
- Includes RAM® Twist-Lock™ dual suction cup base and medium length B size RAM® double socket arm with retention knob; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty*

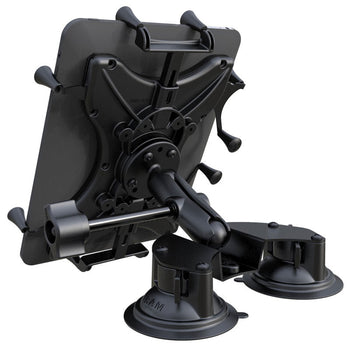

The RAM-B-189-UN9-ALA1-KRU consists of a double 3.3" twist lock suction cup base, double socket arm, extended retention knob and universal X-Grip® cradle for 9"-11" Tablets. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The RAM-B-189-UN9-ALA1-KRU expands and contracts for perfect fit of most 9"-11" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®. The X-Grip® cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Components
hardware included
Assembly Hardware

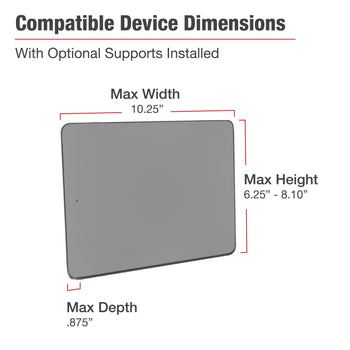

holder dimensions
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
suction size
(2) 3.3" Diameter Bases, Total Width 7.95"
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Powder coated steel
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
1.158 kg
