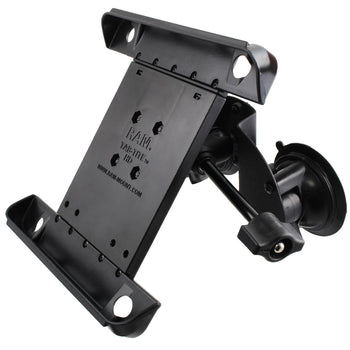

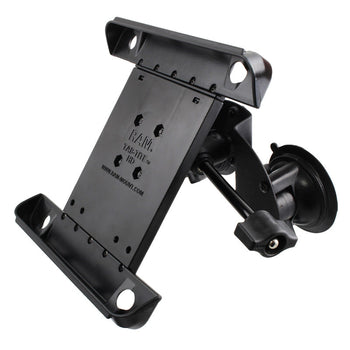

RAM® Tab-Tite™ Dual Suction Mount with Extension Knob for iPad Gen 1-4

Part#: RAM-B-189-A-TAB3-ALA1-KRU
UPC:793000000000Patented

£126.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.

You can order the individual component parts below or we'll try to offer a suitable alternative.

Swipe to see more images.

The portability and versatility of RAM suction cup mounts is second to none. With a hold so firm it's as if your tablet was hard mounted, this double suction cup system will be a must have for your tablet EFB solution. With a twist lock feature for easy installation and removal of the mount, this go anywhere product is the perfect tablet accessory for any pilot, both private and commercial. With a wide range of tablet cradles, you are sure to find the product that is right for your configuration. For safety, accessibility, and ease of adjustment for perfect viewing angles, you'll find nothing compares to the design of our patented double socket arm. Renowned for its simplicity and ease of use, this elegant design is just one of many features that sets RAM apart. RAM may not give you wings, but we'll certainly help you take flight. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

hardware included

Assembly Hardware

holder dimensions

Height Range: 8.5" - 11.125"
Width Range: 6.38" - 7.75"
Depth Range: .13" - .56"

suction size

(2) 3.3" Diameter Bases, Total Width 7.95"

socket to socket length

1.75"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Powder coated steel
Marine-grade aluminium
High strength composite

packaging type

Poly Bag

Weight

0.75 kg
