RAM® Handlebar Clamp Mount with M8 Bolts and Round Plate - Short

Part#: RAM-B-186-A-202U
UPC:793442925139

£29.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.

You can order the individual component parts below or we'll try to offer a suitable alternative.

Swipe to see more images.

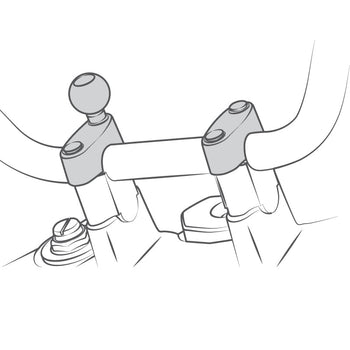

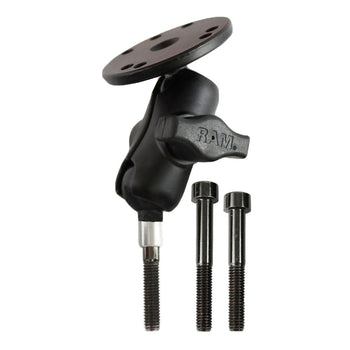

Your motorcycle rides on rubber tires for grip and to soften the ride. Why should it be any different for your mounted electronics? With RAM's patented rubber ball and socket technology, the turn of a single knob grips the adjustment arm to a rubber ball designed to dampen shock and vibration. With RAM products, it's all grip and no slip plus protection for your valuable electronics. Simply place our easy to install ball base onto the motorcycle handlebar top clamp and you're done. After that, a world of mounting possibilities just opened up. The round base contains a 1" diameter rubber ball connected to a flat 2.5" diameter base. This mount has pre-drilled holes, including the universal AMPS hole pattern.

Components

hardware included

(1) M8 x 55mm Socket Head Cap Screw
(1) M8 x 60mm Socket Head Cap Screw
(1) M8 x 65mm Socket Head Cap Screw

socket to socket length

1.75"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium

packaging type

Poly Bag

Weight

0.246 kg

Additional Information

To determine if these bolts are compatible with your motorcycle measure the bolt for the diameter and add 30mm to the length. If it matches one of the 55, 60, or 65 mm length, then you can use the appropriate bolt supplied with the mount. If it does not match, you may be able to source the correct length of bolt locally or from your BMW dealer. Be sure to use the correct torque spec when attaching the mount.
