RAM® Twist-N-Tilt™ Motorcycle Mirror Mount

Part#: RAM-B-181U
UPC:793442921865Patented

£45.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team , alternatively order the individual component parts below.

Swipe to see more images.

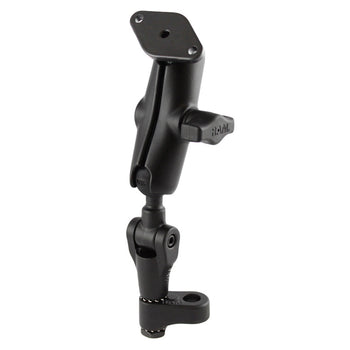

RAM Twist and Tilt™ mount for motorcycle handlebar or mirror bracket attachment. Simply choose your preferred mounting location and the possibilities become endless. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. The versatile mounting base in this kit pivots up, down, left and right affording you the ultimate in adjustability. With a turn of a single comfortable to grasp knob, viewing adjustments can be made and the sleek hourglass shape of the arm assembly compliments the lines of any motorcycle. High quality materials insure your electronic device is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your mobile device.

Components

hardware included

(1) M10-1.25 x 40mm Socket Head Cap Screw
(1) M8-1.25 x 40mm Socket Head Cap Screw
(2) M10-1.25 Hex Nuts
(2) M8-1.25 Hex Nuts
(1) M10-1.25 x 20mm Socket Head Cap Screw
(1) M8-1.25 x 20mm Socket Head Cap Screw
(3) M10 Tooth Lock Washers

socket to socket length

3"

hole pattern

2-Hole AMPS: 1.912"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium

packaging type

Poly Bag

Weight

0.39 kg

Additional Information

It is not suggested, nor is it recommended that users remove any existing stainless steel screw and replace it with the Twist and Tilt RAM Mount base. An example of this would be the handlebar yoke clamp bracket or other vital attachments which hold essential structural components together.
