RAM® Glare Shield Clamp Mount for GARMIN 695 & 696

Part#: RAM-B-177-GA38U
UPC:793442927799Patented & Pats. Pend.

£70.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team , alternatively order the individual component parts below.

Swipe to see more images.

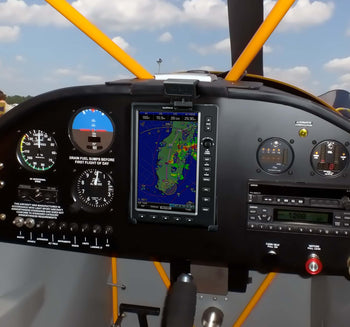

The RAM-B-177-GA38U consists of a glare shield clamp base, double socket arm and cradle for the Garmin GPSMAP 695/696. Simply locate the clamp on any clamping surface up to 5/8" thick and gently snug the nylon thumb screws. The double ball & socket system will provide perfect viewing angles to get the most from your Garmin GPSMAP. The RAM glare shield clamp with double ball & socket system is far and away the most discrete and clean way to mount most any compact electronic device to the glare shield of your aircraft.

hardware included

Assembly Hardware
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad

clamp range

.625" max

socket to socket length

1.75"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium
High strength composite

packaging type

Poly Bag

Weight

0.42 kg
