RAM® Motorcycle Fork Stem Mount with Universal Action Camera Adapter
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to offer a suitable alternative.
Swipe to see more images.

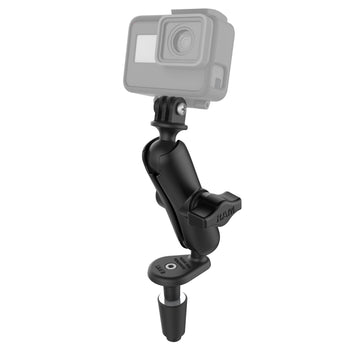

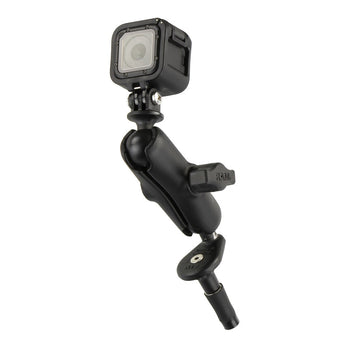

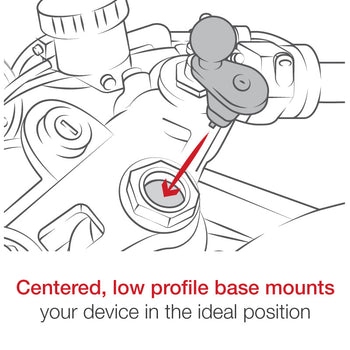

The RAM-B-176-GOP1U consists of a fork stem base, double socket arm and 1" diameter ball with custom GoPro® Hero adapter. The GoPro® Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket. This part is designed to fit into the cylindrical bore wall of fork stems and will work with stems that measure from 12 - 38mm (.5” – 1.49”).

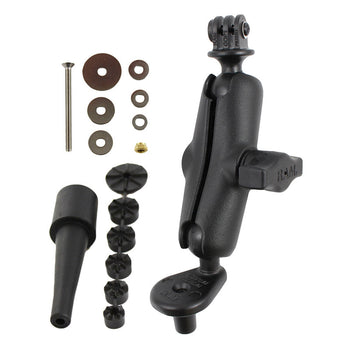

Components
hardware included
Assembly Hardware

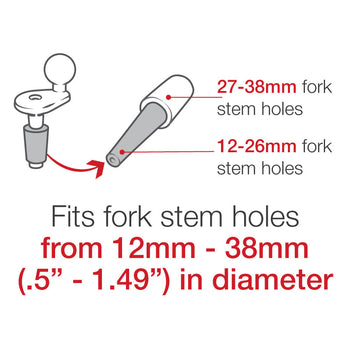

(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
(1) M5 x 60mm Machine Screw
(1) Steel Washer Set
(1) Nut Pocket Washer Set
(1) Brass Nylock Nut
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.296 kg
