RAM® X-Grip® Large Phone Mount with Motorcycle Fork Stem Base
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..
Swipe to see more images.
Features
- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Includes motorcycle fork stem base that works with stems 12mm to 38mm in diameter and short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of stainless steel components, high-strength composites, and powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

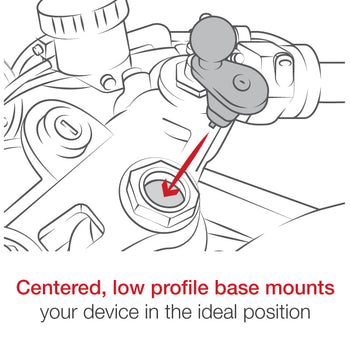

Designed to fit into the cylindrical bore wall of fork stems that measure 12mm to 38mm (.5” to 1.49”) in diameter, the RAM-B-176-A-UN10U consists of a fork stem base, short length double socket arm, and the popular spring-loaded RAM® X-Grip® large phone holder. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Made of high-strength composite and stainless steel, this version of the RAM® X-Grip® fits phones ranging from 1.75" to 4.5" in width and keeps your device completely functional and accessible. RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.
Components
hardware included
(1) Optional Tether
(1) Glue Tube for Rubber Caps

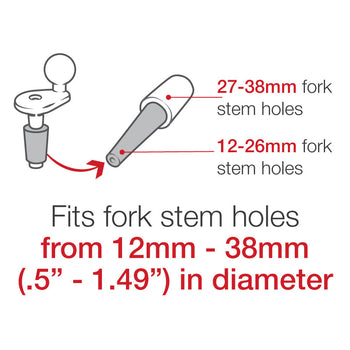

(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
(1) M5 x 60mm Machine Screw
(1) Steel Washer Set
(1) Nut Pocket Washer Set
(1) Brass Nylock Nut
holder dimensions

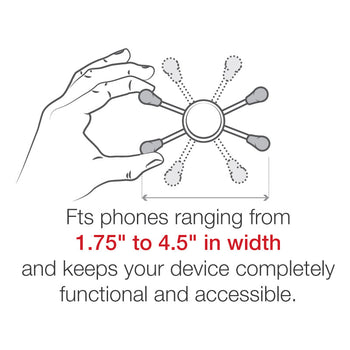

Width Range: 1.75" - 4.5"
Depth Range: .875" max

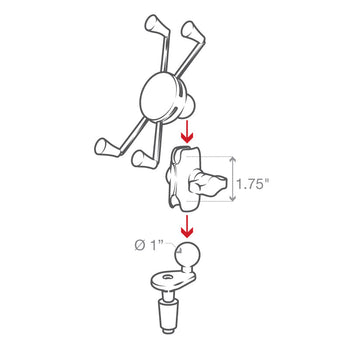

socket to socket length
1.75"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
Stainless steel
packaging type
Poly Bag
Weight
0.31 kg
