RAM® Power Plate™ III Brake/Clutch Reservoir Mount for Radar Detectors
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
Swipe to see more images.

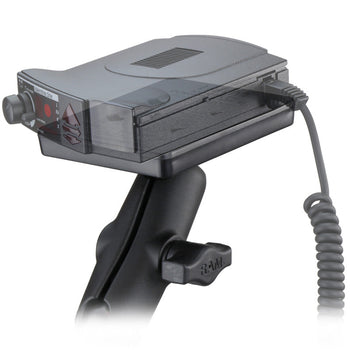

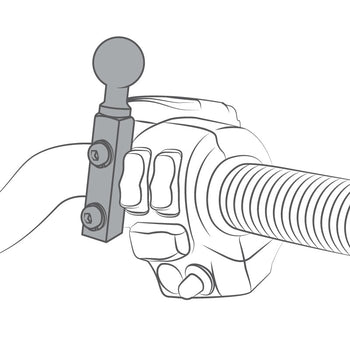

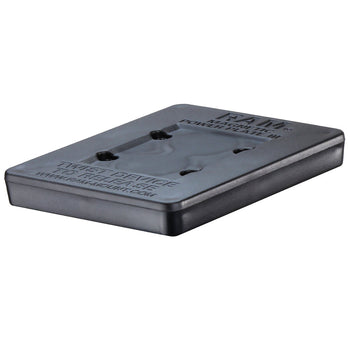

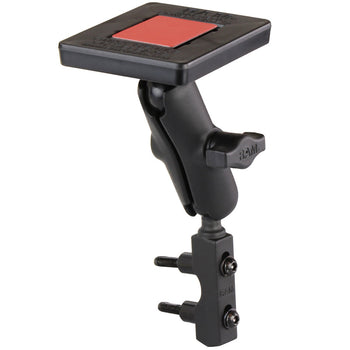

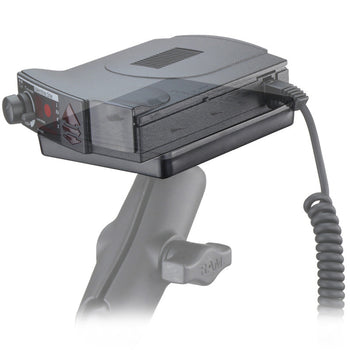

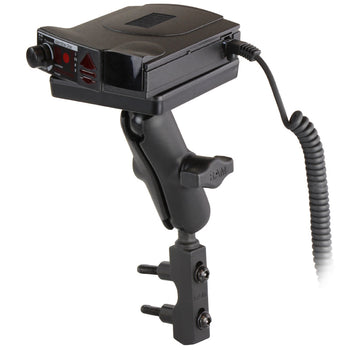

The RAM Magnetic Power Plate™ III U-Bolt Handlebar Mount is designed to hold radar detectors securely while on the road. The magnetic plate includes two powerful rare earth magnets, composite cradle and one adhesive steel plate. To mount your device to the magnet, simply adhere the steel plate to the back of you device and lock up against the holder. This holder includes a quick-release function, where the device conventiely can be removed by twisting out of the holder in one easy motion. The brake/clutch reservoir mount includes both standard and metric mounting bolts to replace the factory bolts on your bike. The patented double ball and socket design provides infinite adjustability, so you can articulate your radar detector to the perfect viewing and operating angle. The rubber ball components provide shock and vibration damping, making this mount suitable for any rugged environment.
hardware included
Assembly Hardware
(1) 50mm x 38mm Steel Adhesive Plate
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range
.5" - 1.25" diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.48 kg
