RAM® Twist-Lock Suction Cup Mount with Universal Phone Holder
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks. For a more accurate lead time please contact our sales team.
You can order the individual component parts below or we'll try to order a suitable.
Swipe to see more images.

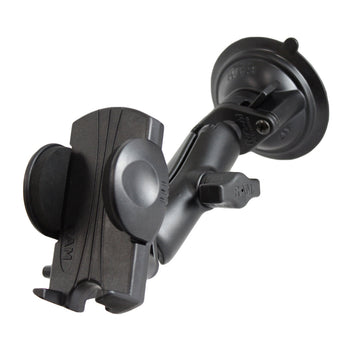

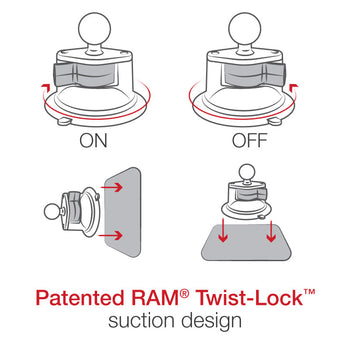

The RAM-B-166-UN1U, twist lock suction cup mount consists of a 3.3" suction cup locking base, diamond base end and universal cell phone cradle. The mount is designed with a RAM 1" patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The cradle is designed to hold a large amount of different kinds of cell phones and small electronic devices. This cradle has padded locking side clamps that close tightly on the item you want to hold. To release the clamp hold, simply press the button found at the bottom left side of the cradle which will spring the clamps open. At the base of the cradle are two small supports to hold the bottom of the item securely in the cradle. Simply attach the suction cup base to the windshield of your vehicle for an easy and safe way to view your handheld device in your vehicle. High quality materials ensure your electronic device is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your mobile device.
Components
hardware included
Assembly Hardware
holder dimensions
Width Range: 1.5" - 2.5"
Depth Range: 1.13" max
suction size
3.3" Diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.368 kg
