RAM® Quick-Grip™ 15W Waterproof Wireless Charging Suction Cup Mount
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features
- Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design and 15W maximum output

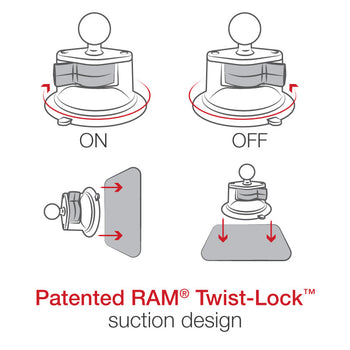

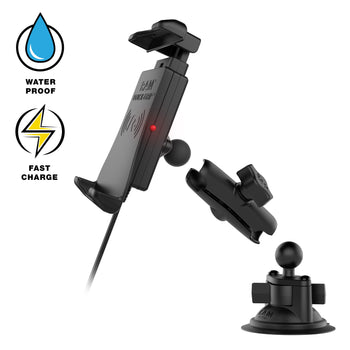

- Kit for vehicles includes wireless charging cradle, B size diamond ball base, medium double socket arm, and RAM® Twist-Lock™ suction cup
- Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

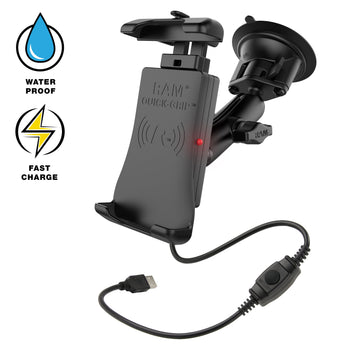

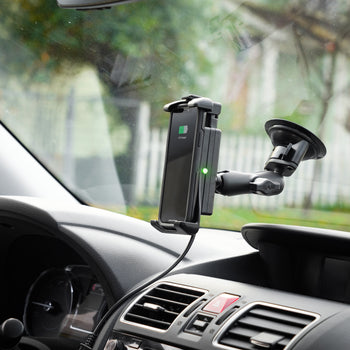

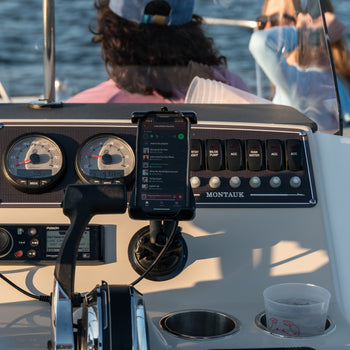

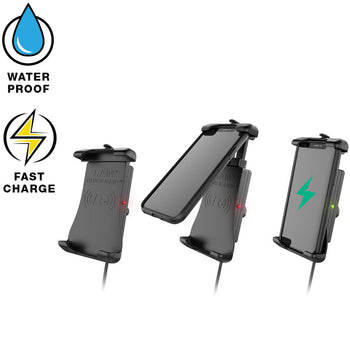

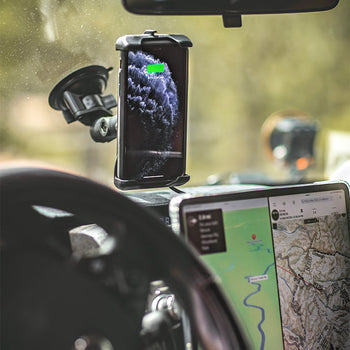

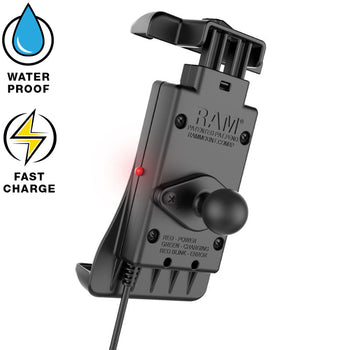

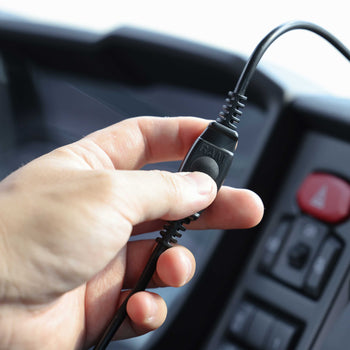

The RAM® Quick-Grip™ Wireless is a patented, universal waterproof wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi compatible wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM® Quick-Grip™ Wireless suction cup kit includes a B size diamond base featuring a 1” rubber ball, medium length double socket arm, and RAM® Twist-Lock™ suction cup. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.
Components
hardware included
(1) Safety Tether
(1) Silicon sleeve for USB waterproof connection
(1) 1.2 Meter USB Extension Cable
(4) Small zip ties
(2) Large zip ties
holder dimensions
Height Range: 5.625" - 6.625"
Max Width: 3.125"
Max Depth: .7"
suction size
3.3" Diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
Stainless steel
packaging type
Retail Box
power specifications
Input Power:5V-2A; 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies
input connector
USB Type-A Male
input cable length
20" with optional 1.2M extension cable
operating temperature
0°C to +37.7°C
regulatory
Over current protection, short circuit protection and over temperature protection
certifications
FCC, IC, KC, CE, E-Mark, WEEE, RCM, and RoHS Compliant
Warranty
1 year warranty
Weight
0.75 kg
Additional Information
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.
This charger is not recommended for Apple iPhone 12, 13 & 14. These iPhone models support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard. MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standard today up to 15W.
