RAM® Tough-Charge™ 15W Wireless Charging Suction Cup Mount
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..
Swipe to see more images.
Features
- Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 15W maximum output

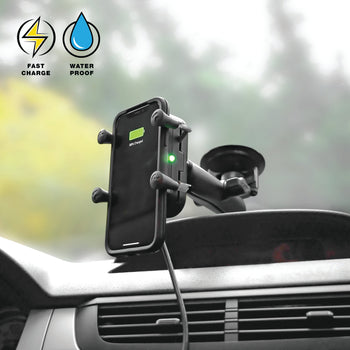

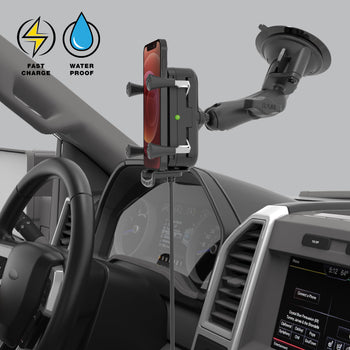

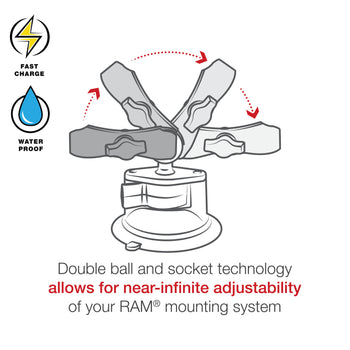

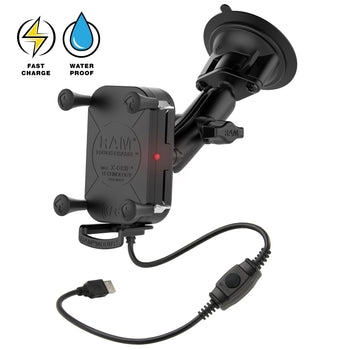

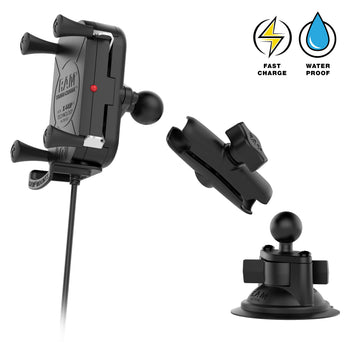

- Kit for vehicles includes wireless cradle, B size diamond ball base, medium double socket arm, and RAM® Twist-Lock™ suction cup
- Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

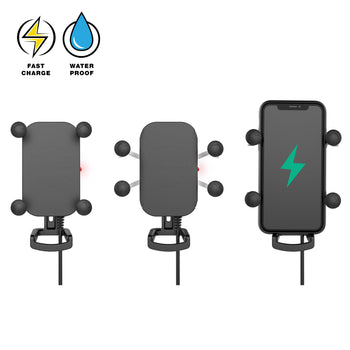

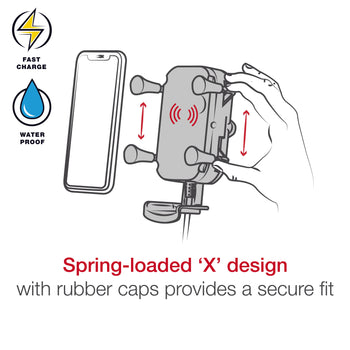

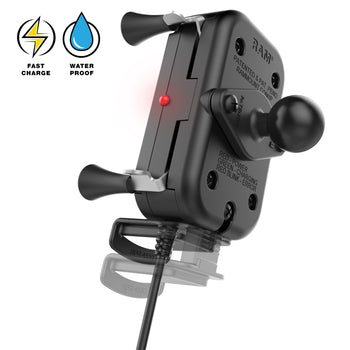

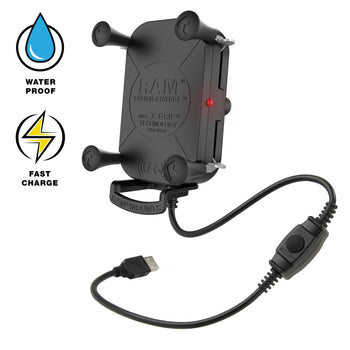

The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi compatible wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi wireless charging cradle ensures your compatible phone charges no matter what position it’s placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM® Tough-Charge™ with X-Grip® Technology wireless charging suction cup kit includes a B size diamond base featuring a 1” rubber ball, medium length double socket arm, and RAM® Twist-Lock™ suction cup. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.
Components
hardware included
(1) Safety Tether
(1) Glue Tube for Rubber Caps
(1) Cradle Leg
(1) Cradle Leg Cover
(1) Silicon sleeve for USB waterproof connection
(1) 1.2 Meter USB Extension Cable
(4) Small zip ties
(2) Large zip ties
holder dimensions
Width Range: 2.375" - 3.25"
Depth Range: .875" max
suction size
3.3" Diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
Stainless steel
packaging type
Retail Box
power specifications
Input Power:5V-2A; 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies
input connector
USB Type-A Male
input cable length
20" with optional 1.2M extension cable
operating temperature
0°C to +37.7°C
regulatory
Over current protection, short circuit protection and over temperature protection
certifications
FCC, IC, KC, CE, E-Mark, WEEE, RCM, and RoHS Compliant
Warranty
1 year warranty
Weight
0.72 kg
Additional Information
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.
This charger is not recommended for Apple iPhone 12, 13 & 14. These iPhone models support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard. MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standard today up to 15W.
