RAM® Powered Suction Cup Mount for Kyocera DuraForce Ultra 5G E7110
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..
Swipe to see more images.
Features

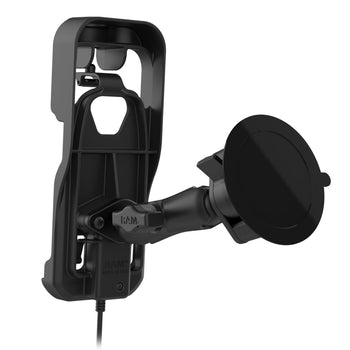

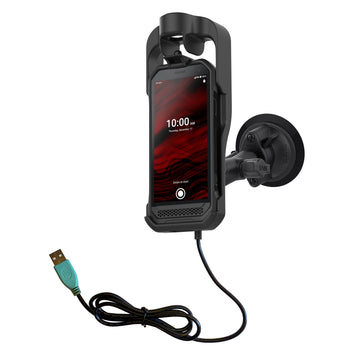

- Form-fit powered vehicle dock for the Kyocera DuraForce Ultra 5G E7110 provides a perfect fit for your device without a case or sleeve; access to audio port is available
- When connected to a power source, integrated pogo pins provide power to the device while docked

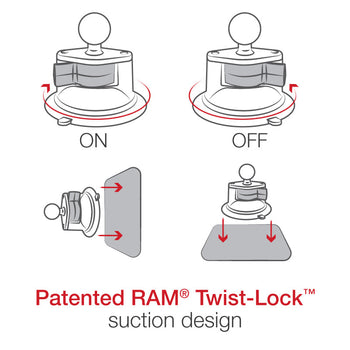

- Includes RAM® Twist-Lock™ suction cup base ideal for vehicle windshields and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
- Backed by a 3-year warranty
This form-fit dock is designed specifically for the Kyocera DuraForce Ultra 5G E7110 providing a perfect fit for your device without a case or sleeve. The dock supplies power to the device through integrated pogo pins while the device is docked, and also retains access to the audio port for the device's PTT functionality. This kit includes the RAM® Twist-Lock™ suction cup mount for vehicle windshields with a medium length B size socket arm and included hardware. Make sure to thoroughly clean the surface you will be mounting the suction cup to ensure a secure hold.
Components
hardware included
Assembly Hardware
suction size
3.3" Diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
input connector
USB Type A Male
output cable length
1.25 Meters
Weight
0.48 kg
