RAM® Twist-Lock™ Suction Cup Double Ball Mount with Round Plate - Long
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Swipe to see more images.
Features

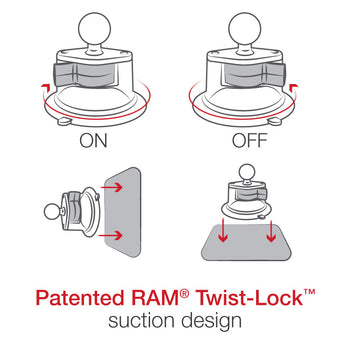

- RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
- Includes B size long length RAM® double socket arm and 2.5" round base with B size 1" rubber ball; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty*

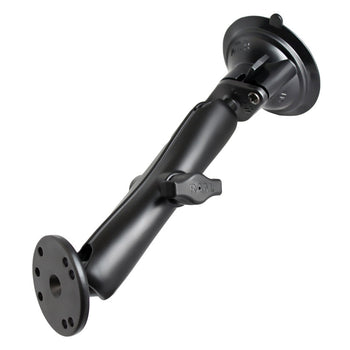

The RAM-B-166-C-202U consists of a 3.3" suction cup twist lock base, LONG double socket arm and round base that contains the universal AMPs hole pattern. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the round base adapter will connect to most RAM cradles and 3rd party cradles.
Components
hardware included
Assembly Hardware
product dimensions
Overall Height: 9"
suction size
3.3" Diameter
socket to socket length
5.31"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.409 kg
