RAM® Twist-Lock™ Suction Cup Mount with Round Plate & Hardware

Part#: RAM-B-166-202U-UK1
UPC:793442911002Patented

£42.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks.

For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..

Swipe to see more images.

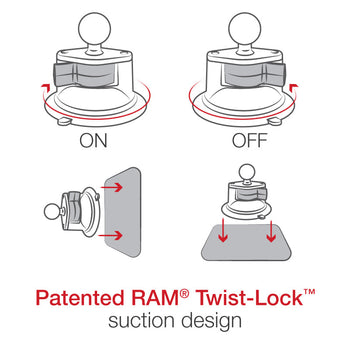

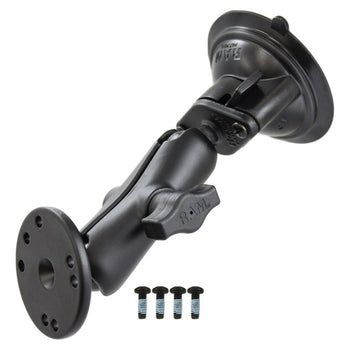

The RAM-B-166-202U-UK1 consists of a 3.3" suction cup twist lock base, standard length double socket arm, round base adapter that contains the universal AMPs hole pattern and mounting hardware. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the round base adapter will connect to many RAM cradles. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks.

The included mounting hardware is used for attachment to all RAM cradles that contain the universal AMPs hole pattern.

Components

hardware included

(4) #8-32 x 1/2" Thread Locking Machine Screws

product dimensions

Overall Height: 6.69"

suction size

3.3" Diameter

socket to socket length

3"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium
High strength composite

packaging type

Poly Bag

Weight

0.31 kg
