RAM® Handlebar U-Bolt Mount with LED Spotlight
Variants
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Special Order Item. Please contact our sales team for availability.
You can also order the individual component parts below.
Swipe to see more images.

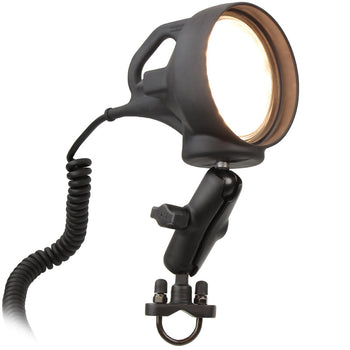

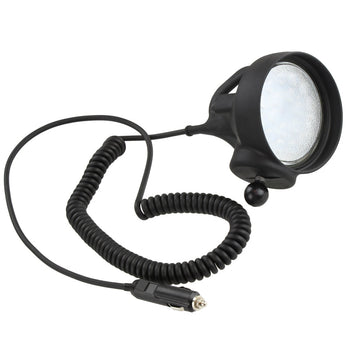

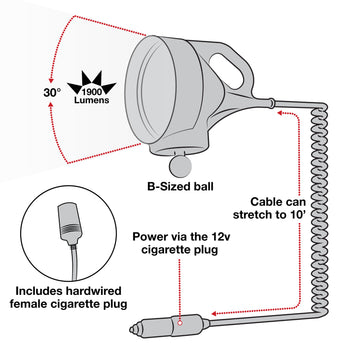

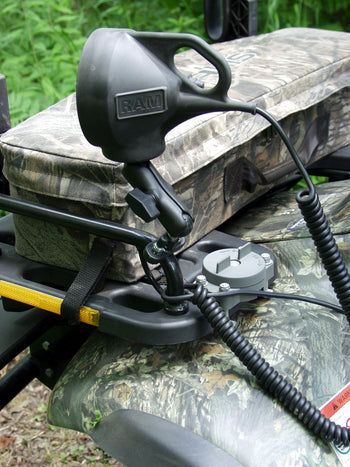

The new RAM® Mounts LED Spotlight has been completely redesigned. We have integrated a new LED bulb that yields a brighter and more efficient light that enables you to add safety and lower power draw to your ATV, boat or vehicle. The weather-resistant body shields the 30-degree spot light LED bulb, which yields a wider and brighter range of light, from the elements. The long cord with standard 12v plugin means you can mount the light from nearly any location. The RAM-B-152R consists of a u-bolt base that makes attaching to handlebars, tubing, or railing a breeze. Simple to install and easy to use, the possibilities become endless. Included in this package is hardware for tubing that is 0.50" to 1.25" in diameter.
Components
hardware included
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
bulb specifications
PAR36
12 Volts DC
9 Watts
1900 Lumens
Sealed Beam
30-Degree Spot Light
Frosted Lens
4500K colour Temp
clamp range
.5" - 1.25" diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
Rubber
packaging type
Retail Bag
Weight
1.05 kg
