RAM® ATV/UTV Rail Mount with LED Spotlight
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
Swipe to see more images.

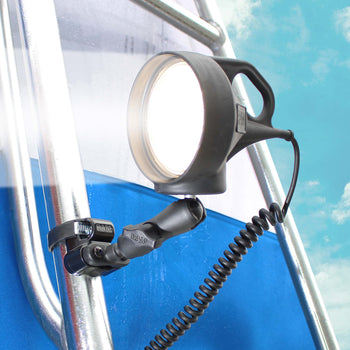

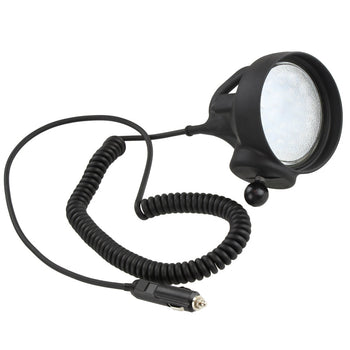

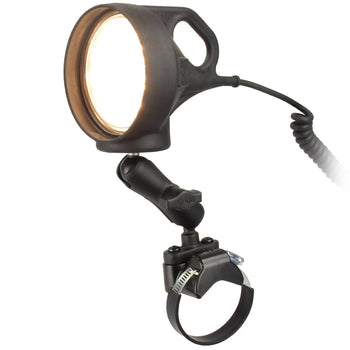

The new RAM Mounts LED Spotlight has been completely redesigned. We have integrated a new LED bulb that yields a brighter and more efficient light that enables you to add safety and lower power draw to your ATV, boat or vehicle. The weather-resistant body shields the 30-degree spot light LED bulb, which yields a wider and brighter range of light, from the elements. The long cord with standard 12v plugin means you can mount the light from nearly any location. The RAM-B-152-231Z-2 consists of a double socket arm, one strap hose clamp and U-bolt base, and the rubber coated RAM LED spotlight. Designed for a clean installation, this mount accommodates most common tubing sizes on UTV’s and ATV's. Safely concealing a strap clamp in a compact housing, you won't have to worry about exposed sharp edges or unwanted loosening. The patented rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment to set your light in the ideal position.
hardware included
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer

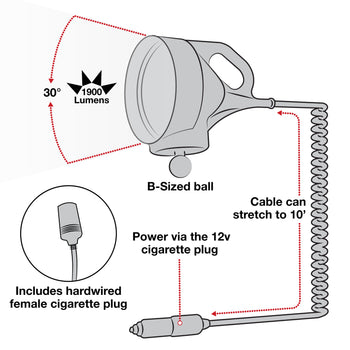

bulb specifications
PAR36
12 Volts DC
9 Watts
1900 Lumens
Sealed Beam
30-Degree Spot Light
Frosted Lens
4500K colour Temp
clamp range
U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
Rubber
packaging type
Retail Box
Weight
1.27 kg
