RAM® Handlebar U-Bolt Double Ball Mount for Garmin dezl™ 560LMT & 560LT

Part#: RAM-B-149Z-GA43U
UPC:793442938955Patented & Pats. Pend.

£54.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks.

For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..

Swipe to see more images.

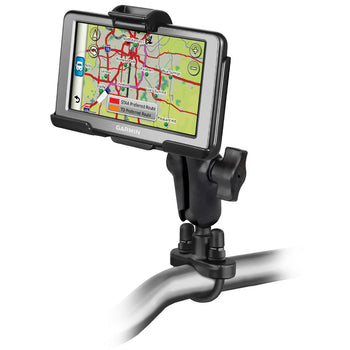

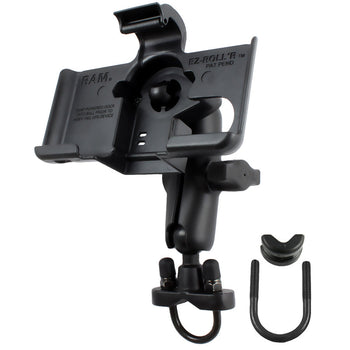

The RAM-B-149Z-GA43U consists of a zinc coated u-bolt base, standard length double socket arm and high strength composite cradle. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

hardware included

Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium
High strength composite

packaging type

Poly Bag

Weight

0.37 kg
