RAM® Handlebar U-Bolt Mount for Garmin Astro 320, GPSMAP 62 & 64 Series
Ball Base Information
"RAM" Prefix Code
To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.
"RAP" Prefix Code
Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.
RAM® BALL SIZES
The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.
The most common ball size applications:
B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications
Please check with our technical team for advice.
Currently out of stock, maximum wait time will be 6 weeks.
For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..
Swipe to see more images.
Features
- Complete GPS mounting kit for handlebars includes zinc-coated U-bolt base that accommodates rails from .5" to 1.25" in diameter, medium length B size RAM® double socket arm, diamond base ball adapter, and form-fit GPS cradle

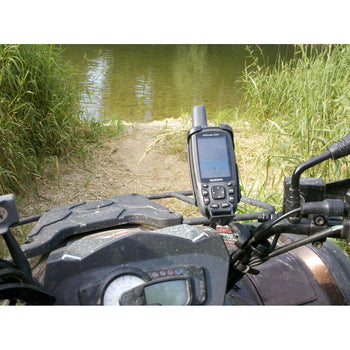

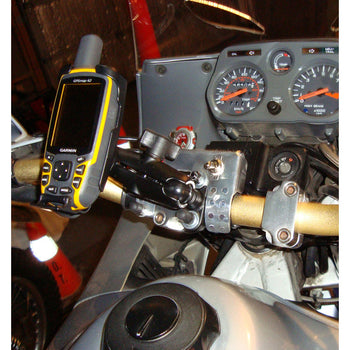

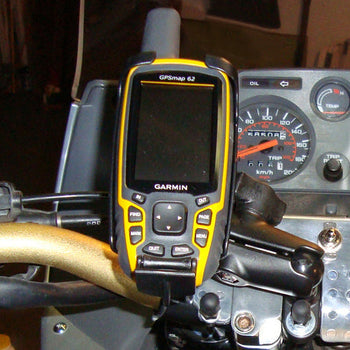

- RAM® Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
- Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

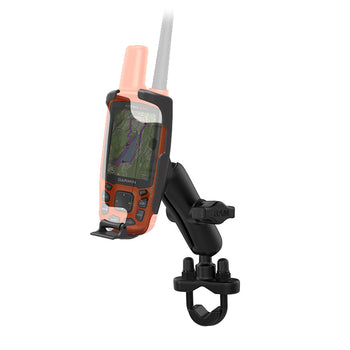

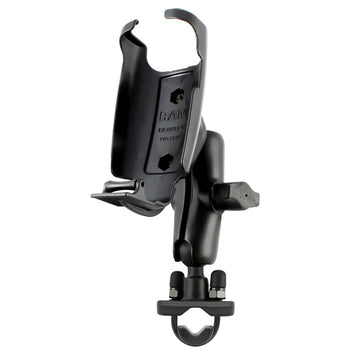

The RAM-B-149Z-GA41U consists of a zinc-coated U-bolt base, medium length double socket arm, and high-strength composite cradle with diamond ball base. Included in this kit is hardware that will accommodate rails from 0.5" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the U-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a B size 1" rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability and ideal viewing angles.
Components
hardware included
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range
.5" - 1.25" diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
High strength composite
packaging type
Poly Bag
Weight
0.33 kg
