RAM® Handlebar U-Bolt Double Ball Mount for Garmin 45, 48, 89, 90, 92
Currently out of stock, maximum wait time will be 6 weeks.

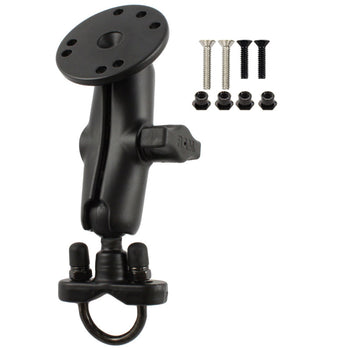

The RAM-B-149Z-G3U consists of our medium length B-size double socket arm with our Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter and our 2.5" diameter round plate with universal AMPS hole pattern. This mount also includes the hardware needed to bolt that round plate to select Garmin GPS units. A complete list of compatible devices can be found below in the compatibility section.
Overview
hardware included
(2) #6-32 x 3/4" Machine Screws
(2) #6-32 x 5/8" Machine Screws
(4) #6-32 Nut Inserts
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range
.5" - 1.25" diameter
socket to socket length
3"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminium
packaging type
Poly Bag
Weight
0.32 kg
