RAM® Quick-Grip™ Phone Mount with Handlebar U-Bolt Base - Short

Part#: RAM-B-149Z-A-PD3U
UPC:793442009105Patented

£53.99 (Incl. VAT)

Ball Base Information

"RAM" Prefix Code

To provide lightweight strength and corrosion resistance, RAM is made of marine grade Aluminium with a black powder coated finish, stainless steel hardware and 'rubber balls' - 'RAM' products are stiffer and stronger than their 'RAP' variants and typically used in more rugged applications.

"RAP" Prefix Code

Many of our 'RAM' products are available in a 'RAP' - composite variant. Our composite 'RAP' products are generally designed for lighter duty applications where keeping the weight of the mount low is a priority.

RAM® BALL SIZES

The weight limits below are a guide only. All factors in a planned mounting configuration should be considered to choose the most suitable ball size.

The most common ball size applications:

B Size - Action Cameras, Phones and Small Tablets
C Size - Medium - Large Tablets in Heavier Duty Applications
D Size - Heavy and Rugged Tablets and Laptops in Commercial Applications

Please check with our technical team for advice.

Currently out of stock, maximum wait time will be 6 weeks.

For a more accurate lead time please contact our sales team, alternatively order the individual component parts below..

Swipe to see more images.

Features

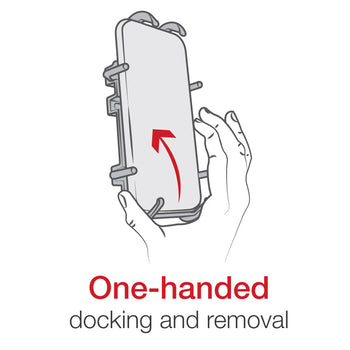

  • Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of phones and other devices; easily insert and remove your phone with one hand
  • Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

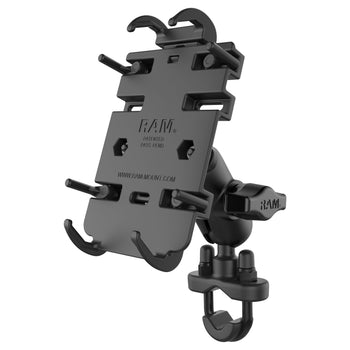

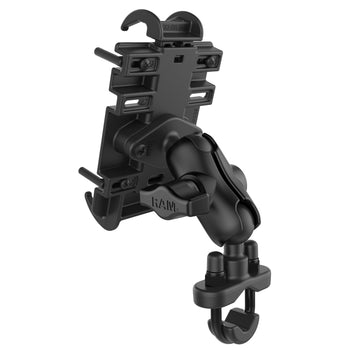

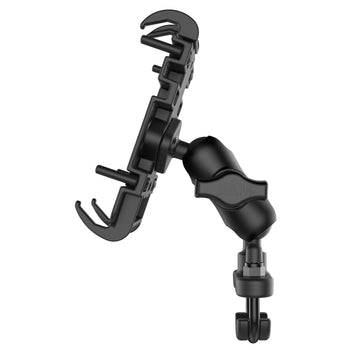

This version of the spring-loaded RAM® Quick-Grip™ holder provides a secure fit for a variety of regular size phones and other devices. The adjustable side keepers ensure that devices like GPS units and Bluetooth speakers within the listed compatible dimensions will also fit in the holder. Included is a short RAM® double socket arm and zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter.

Components

hardware included

Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

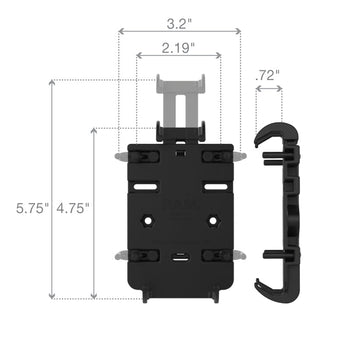

holder dimensions

Height Range: 4.75" - 5.75"
Width Range: 2.19" - 3.25"
Max Depth: .72"

clamp range

.5" - 1.25" diameter

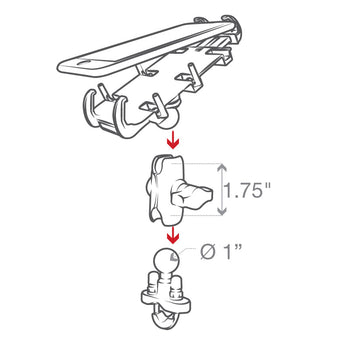

socket to socket length

1.75"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminium
High strength composite

packaging type

Poly Bag

Weight

0.34 kg

Additional Information

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
